1.25m/1.65m 25-40HP Farm Tractor Mounted Rotary Disc Sickle Bar Alfalfa Grass Cutting 3 Point Pto Drum Hay Lawn Flail Mower with CE

Product Description

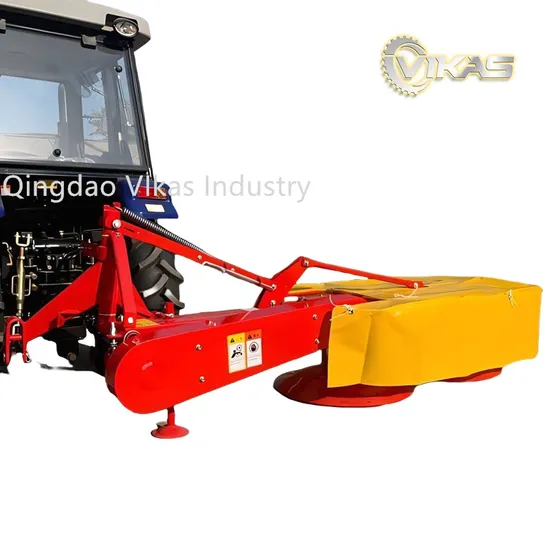

2024 Tractor PTO Driven Double Drum Disc Hay Mower Lawn Mower Rotary Drum Grass Forage Mower
Products decription:
Drum hay mower is an ideal product for farmers and owners of animal husbandries.
It has two different types -manual swingback models and hydraulic lfit. The cutting width can cover 1.25m to 1.85m.
It can be used to reap all kinds of feed plants, grass, meadow grass, forage, heath and wild plants bordering the roads etc.
After reaping, the grass will be left between two drums, making it easier for the baler to directly bundle.
Its power source is the V-belt that transmits the power to the input gear shaft, which then turns to the main transmission shaft, and
drives the drum through the umbrella gear. At full load, the speed of the blade shaft can reach 1620 rpm, which imposes strict
requirements on the gears and bearings of the lawn mower.
Main Features:
1.Adjustable cutting height
2. High efficient cutting with high blades rotating speed.
3. Three point connection mounted for hanging and PTO shaft as power source.
4. Heavy belt drive system & steering shaft drive, easy to maintain &low maintenance cost
5. Breakaway safety system installed to protect drums from damage.
6. Blades are mounted outside and can be quick release and change.
7. Less tractor power driven, low power consumption.
8. Carbon steel spindle
9. NSK bearings available.
10. Move at high speed up to 15km/h.
PTO Drum Hay Mower Technical Parameters:

PTO Drum Hay Mower
Model	DM125	DM135	DM165	DM185
Cutting Width	1250MM	1350MM	1650MM	185MM
Cutting Height	3CM	3CM	3CM	3CM
Drums	2	2	2	2
Rated RPM	1620	1620	1620	1620
Rotor Blades	6	6	6	6
Material Of Blades	65MN	65MN	65MN	65MN
Working Speed	15KM/H	15KM/H	15KM/H	15KM/H
Packing Size(mm)	1510*870*740	1510*870*740	1510*870*740	1510*870*740
Overall Size(mm)	2300*800*1050	2400*850*1050	3000*900*1100	3200*1000*1100
Gross Weight	344KG	360KG	415KG	490KG
Matched Tractor Power	25-40HP	35-50HP	45-60HP	45-60HP

Company Profile :
Vikas Industry has an advanced production management system with 4 sets of big power laser cutting machine and more than 10 sets
of different CNC centers, including lathing,drilling, milling, grinding, sawing and other maching tools etc. Besides these maching centers,
we also have a complete set of powder spraying coating line for different colors. All these can guarantee we can provide clients with a
very favourable price and the fast delivery within one month.
As one of leading manufacturers of agriculture and gardening machinery in China, Vikas Industry has more than 20 years of experiences
in manufacturing and providing one-stop solutions abd services to meet clients different products requirements. Vikas also can provide
OEM and ODM customized services as well. Welcome clients to contact us freely and share with us their specific requirements for
product color, model, design, preferable engine brands, packages, labels and other details. We will provide you a satified feedback
and considerate services.
More photos
Workshop and Machining center
Packing & Delivery:
Packing method: by iron frame / wooden frame with stretching films or wood boxes or other seaworthy packing. Iron Farme Packing. All the frames is welded according to the machine size, to make sure the minimum size and weight. We can assist you to adjust the packing box sizes slightly and machines quantity to make the best loading plan to save
the transportation cost for you.
Certifications:
Other related products recommendation
FAQ 1.Are you factory?
We are a professional manufacturer with 15 years of production experience.
2:What's the MOQ?
A: MOQ is 1set
3:How long is the lead time for sample and mass production? A: Samples will take about 10days,mass production will need 20days.
4: What OEM Customization can you offer? A: Colors
B : Different engines
C: Labels
D: Logo
E: Package
F: Manual books
5: What's your warranty?
A: Normally warranty period is one year (non-artificial damage),we will send you new spare parts to replace by air For free.
6: What other additional services we will offer? A: Professional advertising videos. We have our own photographers and video
editors to offer you professional customized advertising videos.
7: Do you have ISO quality, environmental and safety management system certificate? A: Yes, we can provide the certificates.

---
