Metal Detector Electromagnetic Instrument Wtem Transient Electromagnetic Survey System

Product Description

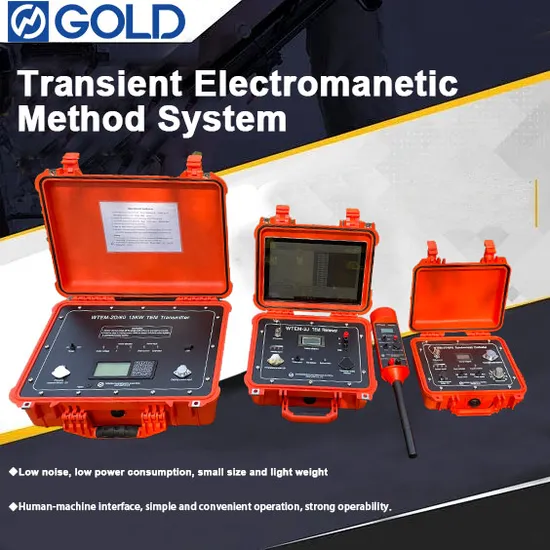

Metal detector Electromagnetic instrument WTEM Transient Electromagnetic Survey System
Product Description
Transient electromagnetic detection is one of the main means of geophysical detection. It stimulates underground targets by transmitting electromagnetic waves underground, receives the secondary field generated by it, and determines the physical parameters of the measured target. Transient electromagnetic measurement uses an ungrounded coil (or loop) to transmit a transient magnetic field underground. Usually, a square current wave is supplied to the transmitting coil to generate a stable magnetic field distribution underground. When the square current wave is turned off, the earth medium will generate eddy currents, the size of which depends on the conductivity of the earth medium.
Main Features & Founction
Observe the secondary field after power failure, and observe in the near area, reduce the influence of side measurement, and enhance the electrical resolution ability;
The same point combination (overlapping loop, central loop) can be used for observation, which has the tightest coupling with the detection target, and the abnormal response obtained is strong, the shape is simple, and the layering ability is strong;
It has the ability to penetrate low-resistance coverage and has a large detection depth;
Because of measuring the magnetic field, it is less affected by static displacement;
Through multiple pulse excitations, repeated observation and superposition of response signals and the application of multiple coverage technology in the space domain, the signal-to-noise ratio and observation accuracy are improved;
Profile measurement and depth measurement are completed at the same time, providing more useful information and reducing multiple solutions.
The ungrounded loop device is used, which is suitable for working in various geographical environments.
Low noise, low power consumption, small size and light weight.
Human-machine interface, simple and convenient operation, and strong operability.
Product Parameters
WTEM-2J/GPS TEM Exploration System Receiver

Channel number	1
Main amplifier gain	1,2,4,8,16,32,64,128 times
Band pass	0~50kHz(liner phased filter), full band 0~400kHz
The minimum sample interval	1μs
Crystal oscillation total error	≤5×10-9
Trace number	50
Stack number	1~9999
Synchronization mode	(1)Cable synchronization (2) GPS synchronization
Power supply	Built-in 12V rechargeable battery(support outside power), working time>10 hours
Working temperature	-10ºC~+50ºC

WTEM-1D 10KW Large Power Transmitter

Transmitting voltage	200V
Transmitting current	50A
Current measurement precision	1%
Power supply frequencies	0.0625Hz,0.125Hz,0.25Hz,0.5Hz,1Hz,2Hz,4Hz,8Hz,16Hz,32Hz
Working temperature	-10ºC~+50ºC
Transmitting power voltage display	Liquid crystal display unit V, display resolution 0.1V

After Sales Service 1. Lifelong Maintenance
In 7 days after sale, if our products can't be used because of the quality problem, we promise that they could be retuned, replaced and their guarantee period is 48 months.
2. Lifelong free upgrade
Software free upgrade, Hardware chargeable upgrade.
3. Product training
We supply video, instruction and engineer overseas training. We will teach you until you find water or mine.
4. Immediate response
If there are any technical problem, We will timely reply you in 24 hours.

---
