China Factory Wholesale Price New Automatic Cutting BOPP PE PVC Film Foil Paper Fabric Roll Cutter Slit Slitter Rewinder Slitting Rewinding Making Machine

Product Description

China Factory Wholesale Price New Automatic Cutting BOPP PE PVC Film Foil Paper Fabric Roll Cutter Slit Slitter Rewinder Slitting Rewinding Making Machine

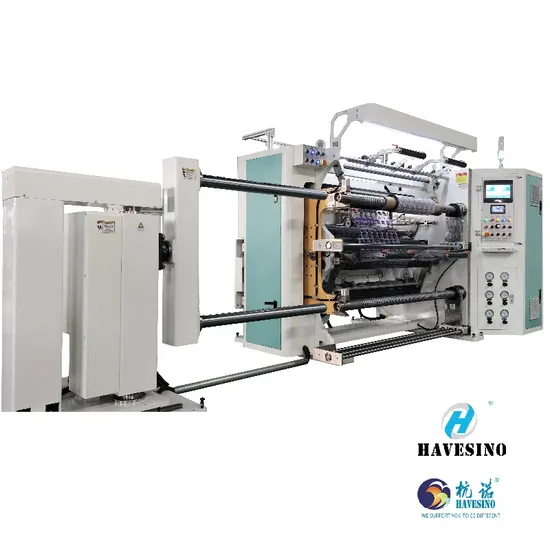

HN1600 SLITTING MACHINE
Automatic Tenstion Control
Automatic Unloading Function
Automatic Unloading Turret Frame
Film/Foil/Non-Woven/Label/Lamination Material Slitter Rewinder
HAVESINO Material to machine
Click one you are interested

What Material Do You Want to Cut?
What Slitting Machine We Have to Cut Your Material? APPLICATION

A. 12-180um HOT STAMPING FOIL,COLDING FOIL,HOLOGRAPHIC FOILS,METALIZED FOIL and so on
B. 12-180um PRIMARY FILM (BOPP,PVC,LDPE,PET,SINGLE SILICON FILM and so on)
C. 12-180um LAMINATES (FILM to FILM,FILM TO FOIL,FILM TO PAPER and so on)
D. Non-Woven FABRIC
E. 40-80gram PAPER/LABEL/ADHESIVE LABEL
F. 20-40UM ALUMINUM FOIL
AND OTHER MATERIAL (PlS CHECK WITH THE SALES MANAGER)
BASIC INFORMATION

1	SLITTING WIDTH	300mm-1300MM
2	SLITTING THICKNESS	12-250UM
3	UNWIND DIA.	MAX1000MM
4	UNWIND CORE I.D.	SHAFTLESS 3 INCH AND 6 INCH
5	REWINDING DIA.	MAX 600MM
6	REWINDING WIDTH	MINI 30MM
7	REWINDING CORE I.D	3 INCH SLIPPING AIR SHAFT
8	SLITTING UNIT	RAZOR BLADE EACH 10 PCS
		SHEAR CIRCLE BLADE 10 PCS
9	MECHANICAL SPEED	MAX550M/MIN
10	WORKING SPEED	MAX500M/MIN
11	MACHINE FRAME THICKNESS:	50MM
12	METER COUNTER:	METER COUNTER
13	WASTE EDGE UNIT:	AIR BLOWER
14	POWER SOURCE	380V,3 PHASE 4 WIRES,50Hz
15	PNEUMATIC SOURCE	0.8MPA
16	LASER POSITIONING	10 PCS
17	WITH AUTO UNLOADING FUNCTION FOR FINISHED ROLL
18	MACHINE SIZE (REF. ONLY):	2950mm(not including unloading frame tree)×2550mm×1970mm
19		4590mm(including the unloading frame tree)×2550mm×1970mm
20	FLOOR SPACE(REF.ONLY):	4200MM*3300MM
21	N.W/G.W (REF. ONLY):	3000/3500

FUNCTIONAL DESCRIPITION
Rewinding:

1 3 INCH SLIPPING FRICTION AIR SHAFT to ensure the rewinding tension stable;
2 Full width pressing rollers by air control to ensure the finished roll surface keep smooth;
3 Anti Stati Remove Brush for both up and down rewinding press roller
4 Small indiviual press roller specially designed for the individual roll which not average thickness
5 Manual laser core position units help to set paper/plastic cores easily and quickly, begin next slit run with very short downtime.
6 Automatic tension control to ensure the rewinding tension stable.
Unwinding:

1 Magnetic Brake with load cell close loop system for unwind tension control;
2 3 inch and 6 inch shaftless uwinding system, easily change the jumbo roll;
3 Hydraulic lifting system to help the operator loading the jumbo roll max. 1 ton from floor;
4 Material splice table, easy change and guarantee edge consistency ;
5 EPC ultrasonic edge guider to avoid the influnce from shinning materia which reflect light back;
6 Back Control Button & Screen Display make the operator easily control the slitter at back side;
3 SECURITY GRAVITY CARPET to ensure the safty of the operator;
=
Blade Unit:

1 Shavor or Razor blade setting easily setting by wrench losing and fixing, very quick and easy;
2 Shear Circle Blade slit for all kind of material stable slitting at high speed.

Unloading:
1 AUTO VERTICAL ROLL UNLOADING DEVICE not only can move horizontally and parallelly,make finished roll unloading much easier than before;
2 Auto unloading function to avoid manual hand push, save time and energy of operator.

About Havesino
HAVESINO is one of top suppliers for Semi Automatic and Fully Automatic thermal paper slitter re-winders and converting machinery for more than 12 years. We have in excess of hundreds of machine installations all around the world!
HAVESINO is one of the leaders in design, developing and building of quality,high performance of thermal paper slitter re-winders and the support machine such as core loader, core-less machine and fully automatic packing lines.
GUARANTEE AND SERVICE

1 100% Test and Check Before Shipment.
2 Detailed Instruction Manual.
3 Two Year Guarantee for All Key Parts.
4 7×24Hours Online Service
5 Installing and Operator Training Service Provided.
6 Whole-Life Free Technical Support.
7 Regular On-Site Routine Inspection.

---
