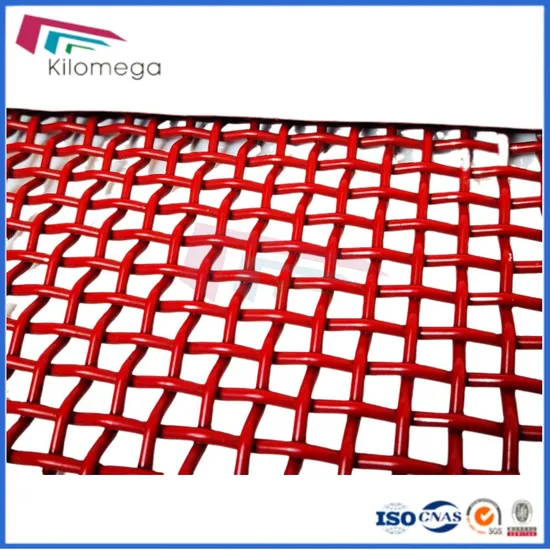

Wear Resistant 65mn Crusher Screen Mesh for Quarry Vibrating Screen

Product Description

Good quality screen mesh for exporting Product Description
Crimped wire mesh also called square wire mesh is cloth made from wire strands. The wires that make up wire mesh run parallel to the width of the roll (cross wires) and parallel to the length (line wires). The cross and line wires are interwoven. That is, the wires cross over and under each other. Wire Mesh can be woven in a number of different styles depending on the material type, wire diameter, and opening size. Crimped wire mesh is available in rolls, sheets or panels, and cut-to-size.
Screen mesh is widely used in industry, agruculture, crusher, building, house fencing and so on.
Heavier woven wires must be pre-crimped. The material remains stable and rigid after the crimping process. Our pre-crimped woven wire mesh is available in intercrimp, lock crimp, plain weave and flat top woven styles, and it is ideal for architectural applications. 1. Angle: 30 degrees, 45 degrees 2. Crimped wire mesh Shape: v-shaped, u-shaped 3. Hook crimped woven wire mesh Hook type: positive check, positive check 4 . Woven wire mesh Material: Stainless steel wire,45Mn steel,65Mn steel,high carbon steel, carbon steel, nickel steel and nonferrous wire. 5 . Hook crimped woven wire mesh Weaving type: Plain, intermediate, crimped 6 .Process: Made with pre-crimped wire in the method of locked crimp, double plain weave, single wave weave, double plain weave, double crimp, space weave. 7 . Hook woven wire mesh Application: Screening in mine, petroleum, chemical, building and food industry. Used in machinery parts, packing, barbecue, hardware products, handicrafts, wire baskets, food machinery, road and railway, etc. Also used in screening and grading of solid materials and filtering of liquid and quarry, etc.
1. Material:
High carbon steel wire, low carbon steel wire, galvanized wire, stainless steel wire and other metal wires.
2. Feature:
It has fine features of neat & precise, sturdy structure, durable& strongly rust-resistant and fine anti-corrosiveness.
3.Packaging:
Wrapped with moister-proof paper, Then covered with Hessian cloth
4.Application:
Screening in mine, coal factory, construction and other industries.used as window
screening, safety guards in machinery enclosures, also used in filtering liquid and gas, sieving grain.
5.Specification:

Item	wire diameter mm	open size mm	width m	length m	weight kg
1	2	3	1.5	2	32
2	3	5	1.5	2	42.6
3	4	8	1.5	2	51.13
4	4.5	12	1.5	2	46.77
5	5	16	1.5	2	45.52
6	5.5	18	1.5	2	49.37
7	6	20	1.5	2	52.7
8	6	22	1.5	2	48.96
9	6.5	24	1.5	2	52.87
10	6.5	27	1.5	2	48.12
11	7	30	1.5	2	50.63
12	8	50	1.5	2	42.29
13	12	75	1.5	2	64

Aperture mm	Aperture Tolerance mm		Wire mm	Edge Length mm		Weight kg/m2
	Minimum	Maximum		Minimum	Maximum
101.60	98.55	104.65	12.70	12.70	50.80	17.92
88.90	86.23	91.57	12.70	12.70	44.45	20.16
76.20	73.91	78.49	12.70	12.70	38.10	23.04
63.50	61.60	65.41	12.70	12.70	31.75	26.88
63.50	61.60	65.41	9.19	9.19	31.75	14.76
57.15	55.44	58.86	9.19	9.19	28.58	16.17
50.80	49.28	52.32	12.70	12.70	25.40	32.26
50.80	49.28	52.32	11.10	11.10	25.40	25.28
50.80	49.28	52.32	9.19	11.10	25.40	17.88
50.80	49.28	52.32	7.92	7.92	25.40	13.57
44.45	43.12	45.78	9.19	9.19	22.23	20.00
44.45	43.12	45.78	7.92	7.92	22.23	15.21
41.28	40.04	42.51	9.19	9.19	20.64	21.25
41.28	40.04	42.51	7.92	7.92	20.64	16.19
38.10	36.69	39.24	9.19	9.19	19.05	22.68
38.10	36.69	39.24	7.92	7.92	19.05	17.31
38.10	36.69	39.24	7.19	7.19	19.05	14.49
31.75	30.80	32.70	9.19	9.19	15.88	26.20
31.75	30.80	32.70	7.92	7.92	15.88	20.08
31.75	30.80	32.70	7.19	7.19	15.88	16.85
28.58	27.72	29.43	7.92	7.92	14.29	21.83
28.58	27.72	29.43	7.19	7.19	14.29	18.35
25.40	24.64	26.16	7.92	7.92	12.70	23.91
25.40	24.64	26.16	7.19	7.19	12.70	20.14
19.05	18.48	19.62	5.72	5.72	9.53	16.78
15.88	15.40	16.35	4.50	4.50	7.94	12.62
11.00	10.67	11.33	4.00	4.00	5.50	13.55
10.00	9.70	10.03	4.00	4.00	5.00	14.51
8.00	7.76	8.24	4.00	4.00	4.00	16.93
6.35	6.16	6.54	2.67	2.67	3.18	10.04
6.30	6.11	6.49	2.50	2.50	3.15	9.93
4.00	3.88	4.12	2.00	2.00	2.00	9.31
3.00	2.91	3.09	2.00	2.00	2.00	11.17
2.00	1.94	2.06	1.50	1.50	1.50	8.99

No.	Grade	Chemical Composition			Wire diameter
		C	Si	Mn	mm
1	45	0.42-0.50	0.17-0.37	0.50-0.80	2.0-6.0
2	50	0.47-0.55	0.17-0.37	0.50-0.80
3	55	0.52-0.60	0.17-0.37	0.50-0.80
4	60	0.57-0.65	0.17-0.37	0.50-0.80
5	65	0.62-0.70	0.17-0.37	0.50-0.80
6	70	0.67-0.75	0.17-0.37	0.50-0.80
7	65Mn	0.62-0.70	0.17-0.37	0.90-1.20	2.0-14.0

6. Workshop:

---
