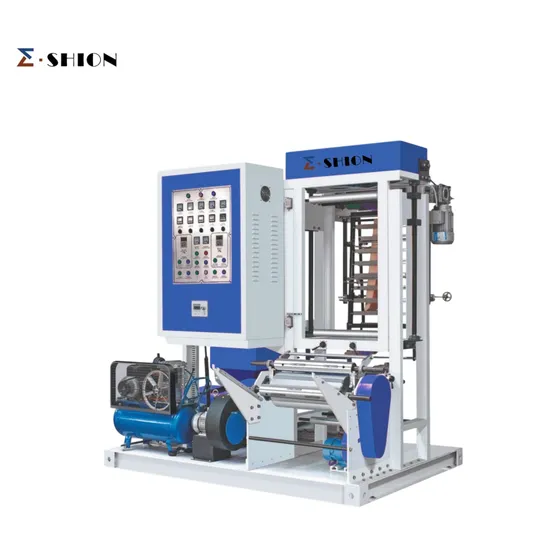

Single Line Plastic T-Shirt Bag Mini Film Extruder Packaging Machine

Product Description

shopping bag film machine 600mm 800mm film blowing extruder USE:
It applies to blow various LDPE, HDPE and LLDPE plastic film, widely applying to food, fruit, clothing, textile, vest type bag and etc. Packing of civil industrial products.

Feature:
1. Main motor and take-up motor speed adjust by inverter. (Winder part has inverter control)
2. By pneumatic cylinder system to adjust the gap of take-up roller and embossing roller
3. Equipped with A-FORM wooden board to make the gusset, and the embossing roller.
4. Material of screw and barrel: 38CrMoAlA Polished with Nitrided Treatment
Hardness of heat treatment: screw HV≥740, barrel HV≥900
Depth of hardening:0.6-0.7mm
Brittleness grade: ≤2 grade
5. Gear box: Surface heat quenching and tempering/auto. Oil lubricated
6. Die material: Steel 40rMu surface treatment of flow channel: hard chrome- plating
7. Digital display temperature controller
8. Air compressor included
9. Die head is fixed type with Al air rings
10. Single winder with two station rollers
11. Lift traction
12. All motors have gear box, except the lift traction motor.

Get a quote

Product Parameters

Model	SJ-45/FM500	SJ-50/FM600	SJ-55/FM800
Film Folding Width	100-450mm	100-600mm	200-800mm
Film Single-face Thickness	0.01-0.12mm	0.01-0.12mm	0.01-0.12mm
Screw Diameter	Φ50	Φ50	Φ50
Screw L/D Ratio	28:1	28:1	28:1
Die Size	Φ50, Φ100	Φ50, Φ100	Φ80, Φ100
Max. Extrusion Output	35kg/hr	40kg/hr	50kg/hr
Main Motor Power	11kw	11kw	11kw
Traction Motor Power	0.75kw	0.75kw	0.75kw
Total Power	20kw	20kw	22kw
Winding Torque Motor	5N.m	5N.m	5N.m
Single-winder Type	Surface Friction Type
Air Ring	1
Machine Weight	1000kg	1200kg	1400kg
Overall Dimension	2.14×1.6×2.3m	2.14×1.7×2.3m	2.14×1.8×2.3m
Working Voltage	380V 3-phase 50Hz

Product Description


Recommend Related Products
ABA Film Blowing Machine PP Film Blowing Machine Single layer Film Blowing Machine

Four-color Flexo Printing Machine Six-color Flexo Printing Machine T-shirt Bag Making Machine
automatic Flat Garbage Bag Making Machine Drawstring Garbage Bag Making Machine Plastic recycling granulator Our Factory
OUR WORKSHOP Our factory specializes in the manufacturing of blown film machines, bag-making machines, printing machines, and pelletizing machines. Our workshop is equipped with modern technology and a dedicated team of skilled professionals. We take pride in our ongoing commitment to quality and innovation, striving to keep our machines in line with industry standards. Our workshop is well-organized, promoting a productive atmosphere where attention to detail is highly valued. We are dedicated to meeting the needs of our customers and providing them with reliable machinery solutions.

Get a quote

FAQ
Q: Where is your factory located? A: Our factory is situated in Ruian City, Zhejiang Province, China. It's about a 40-minute flight or a 4-hour train ride from Shanghai. We would be happy to pick you up at the airport or station and welcome you to visit our factory.
Q: How long is your delivery time? A: Our standard delivery time is usually 30-45 days. However, if you need it urgently, we can manufacture your machine first and deliver it within approximately 10 days.
Q: What's your warranty policy? A: We offer an 18-month warranty on all our products, along with lifetime maintenance. This means that if any parts break down during the warranty period, we will provide free replacement parts.
Q: What package do you use for the product? A: Our products are coated with anti-corrosion oil and covered with plastic film for protection. If you prefer wooden box packing, there may be an additional cost.
Q: Does your factory provide installation service? A: Yes, our engineers can go to the customer's factory for installation. The buyer should prepare the necessary materials for testing the machine in advance and bear the cost of the supplier's technicians, including round-trip airfare, visa fees, accommodation, and wages. The cost is USD 120 per person per day, starting from the date of work commencement until their arrival at the factory.
Q: What are your terms of payment? A: We accept various payment methods such as Telegraphic Transfer (T/T), Letter of Credit (L/C), and Western Union. Please let us know which method you prefer when making the payment.
Q: What if parts break within the warranty period? A: If any parts break down due to manufacturing defects within the warranty period, we will express replacement parts free of charge. You can contact our customer service team to initiate the warranty claim process.tact our customer service team to initiate the warranty claim process.
