China Supplier CNC Round and Oscilation Knife Cutting Machine for Rubber Ptef Non-Asbestos Cork Gasket Fiber Glass Fabric

Product Description

Product Description

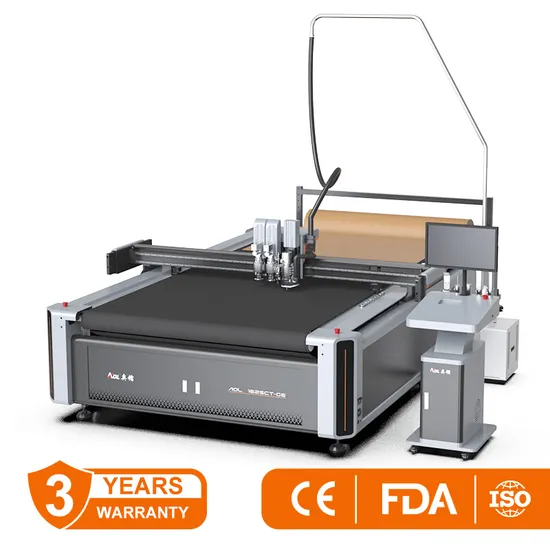

AOL-1625 Digital Gasket Materials Cutting Machine
AOL CNC cutting machine has always been a reliable partner for companies converting gasket materials.
AOL offers proper cutting and milling solutions to process tanked graphite, asbestos-free, rubber, PTFE, cork, hydraulic paper, FP fiber, etc. They are enabling operators in the gasket field to widen their offer and consequently increase their clientele.
The computer-controlled cutting system of gasket materials. Production of items from single pieces to small batch production, with always the same precision, without the detour via the expensive die mold, immediately, without lost time due to preparation of the die mold.
The cutting- and cutting edge quality of the manufactured parts meets the highest technical demands, the dimension accuracy lies within a hundredth millimeter.
Company Profile
AOL is a famous intelligent cutting equipment manufacturer in China Jinan
AOL CNC Equipment Co., Ltd., is committed to providing production solutions for flexible material cutting.
AOLCNC's production base covers an area of 15,000 square meters and has 110 national patents.
AOL's annual production volume is more than 3,000 units. The main products are intelligent knife-cutting machines, automation equipment, and robots.
Our equipment sells worldwide, We welcome OEM orders and recruit agents worldwide.
Our Advantages
Advantages of AOL-1625 CNC Gasket Cutter Machine
1. AOL Independently-developed AOLCUT software, one key Import the data directly then cut, your employee will use skillfully after 2 hours training time
2. Super master automatic nesting software, saving material more than 20%
3. Using Sweden Linden gear transmission, high cutting precision ± 0.5mm.
4. We chose the Panasonic servo motor system, production efficiency is increased by more than 3 times
5. We use knife tools with special materials, such as vertical cuts without temper. So the edge of the material is smooth and burr-free.
6. Our machine could save your labor and material more than $120000 every year, and the product competitiveness would
be improved greatly.
7. Laser projection realizes projecting to any position you want , automatic cutting, small pieces of material leftovers could
be recycled
8. The anti-static system of the whole machine to maximize the protection of personnel
9. This model machine won 5 patented technology certifications in the world Product Parameters

Model	AOL-1625 /AOL-1825(Accept customization)
Working Range	1600*2500MM / 1800*2500MM	Rated Power	11KW
Product Size	3560*2350*1221MM / 3560*2550*1221MM	Rated Voltage	220/380V±10%
Cutting Thickness	≤50MM	Interface	Ethernet port
Cutting Speed	0-1800MM/S	Control Panel	LCD touch screen
Cutting Tools	Tools can be easily changed, with oscillating knives, pneumatic knife Tools, milling knife tools, etc.
Cutting Material	Asbestos-free sheet, PTFE, Graphite board, Rubber board, asbestos board, silica gel board, Graphite metal, PVC soft board, Fluorine rubber board, and so on.

Detailed Photos

Certifications
Packaging & Shipping
After Sales Service
3- years warranty for all serial products
1. AOL after-sales service team has more than 20 engineers.
2. There are at least 3 engineers to serve one agent/customer, and they all speak English.
3. We provide a complete user manual, using videos and photos.
4. We support remote assistance to help you install and use the software.
5. We support 24*7 online guides and services. And there are overseas engineers available to serve you on-site.
6. Our machine warranty is 3 years, except for felt, cutting tools, and blades, during this period, if there is any problem, we will replace new products for free via DHL, and for cutting tools, we will repair them for free within one year.
7. We promise to send out the replaced parts within 24 hours.
8. We will form a service team for you, including AOL sales staff, AOL engineers, AOL sales managers, AOL sales directors and you (or your employees), if you have any questions, we will reply within 1 minute.
9. AOL software is free to upgrade for life.

---
