China Best-Selling Ceramic Sand Granulator

Product Description

Ceramic sand production line
Products:
Zheng produced ceramic sand mining machine pellet mill with a new integrated design structure, fully enclosed run for domestic initiative, and has been widely used and unanimous praise. The device to shale, clay as the main raw material to produce ceramic clay particle size of 5-25mm, Shale, high-strength ceramic, ceramic flowers, refractory ceramic, is the key equipment to produce oil fracturing proppant.
Features:
(1) fully enclosed run, solve the dust pollution, improve the working environment and material losses, with raw material adaptability, high production efficiency, product quality and other characteristics;
(2) the use of frequency control, easing the impact of the device, smooth operation, to protect the motor and reduce energy consumption by 30% or more;
(3) a high ball, the ball is easy to control grain size, uniform size, strength, and overall a ball, a substantial increase in production efficiency.
Structures

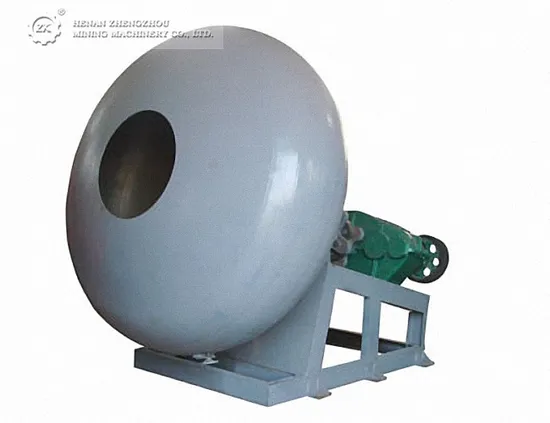

Ceramic sand granulator consists of the main part of the disc, a large bevel gear, bevel gear, headstock, horizontal, angle adjustment mechanism, scraper, transmission, chassis and so on.
Works:
Motor by a V-belt drive and reducer coupling, reducer shaft opening associated conical gear and bevel gear meshing with the large. Large bevel gear connected by bolts and disc. After this motor starts, the disc also will be running. Disc spindle, double row spherical roller bearings, horizontal, bearing at the base. The end of the shaft is connected to the mechanical angle adjusting screw. Due to the double row spherical roller bearings role by adjusting screw adjusting angle mechanism, so that the spindle and disc rotation within a certain range in order to ensure a need to adjust the tilt of the ball plate. By changing the gear motor output shaft and the input shaft pulley diameter, the disc can be adjusted to the speed of the ball.
Company Name: Henan Zhengzhou Mining Machinery Co., Ltd.
Official Website: http://hnzkjq.en.made-in-china.com
24-hour Free Sales Consulting Phone: 86-18937185591.
Company Address: Qiaolou caizhai industrial estate, Xingyang city, Henan Province
Please pay attention to the company's other products:
Price of rotary kiln: http://hnzkjq.en.made-in-china.com/calcining.html
Rotary Kiln:http://hnzkjq.en.made-in-china.com/calcining.html
Preheater: http://hnzkjq.en.made-in-china.com/calcining/8.html
Cement Mill: http://hnzkjq.en.made-in-china.com/grinding/17.html
Rotary Dryer: http://hnzkjq.en.made-in-china.com/calcining/116.html
Raw Mill: http://hnzkjq.en.made-in-china.com/grinding/16.html
Trommel Screen:http://hnzkjq.en.made-in-china.com/separating/137.html
Rotary cooler:http://hnzkjq.en.made-in-china.com/calcining/6.html

Model	Diameter(mm)	Capacity(t/h)	Revolutions(r/min)	Power(kW)	Weight(kg)
ZK-17	1700	12	13.8	18.5	3700
ZK-22	2200	13	13.8	22	4200
ZK-30	3000	24	11.3	45	8800
ZK-32	32000	25	10.3	55	10500
ZK-35	35000	27	9.8	75	13200

FAQ:
Q: Are you a factory or a trading company?
A: We are factory manufacturing packaging machines and we provide perfect OEM and after-sale service.
Q: Can you send me the video to show how the machine works?
A: Certainly, we have made video of every machine and uploaded them to Youtube.
Q: What should I take care when using the machine?
A: Keep the machine away from thinner and other chemical liquid.
Q: How to maintain the machine?
A: Check the connection part and clean the screen frame regularly.
Q: How can I pay my order?
A: We accept T/T, Western Union, ****** Trade Assurance payments. For those orders less than 1000USD, we accept PayPal to pay.
Q: Do you have a CE certificate?
A: For every model of machine, it has a CE certificate.
Packaging Detail :
The main machinery is in nude packing and spare parts in Wooden or steel box standard export packing, suitable for long distance delivery.

---
