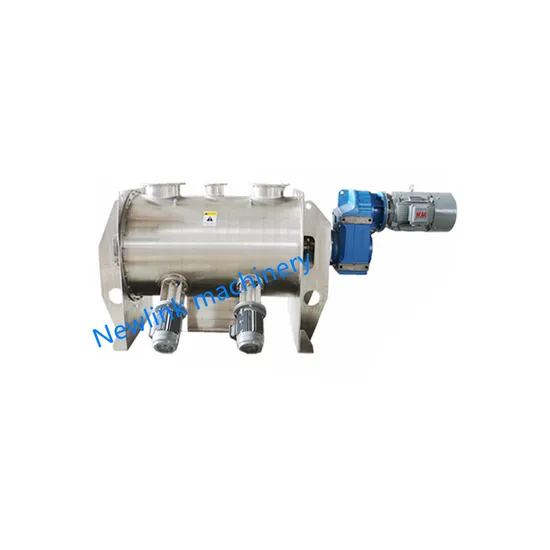

Dry Powder Ribbon Blender Mixing Machine /Feed/Fertilizer/Soil Mixer Powder Blending

US$13,000.00 1 Set (MOQ)

Basic Info.

Model NO.
NP100
Application
Powder, Powder
Application Area
Food
Certification
CE
Condition
New
Stirring Type
Spiral
Working
High Speed Mixer
Capacity
2000lph
Material
Stainless Steel
Function
Blending
Weight
380kg
Rotary Speed
17-60r/Min
Mixer Type
Powder Mixer
Layout Type
Horizontal
Mixing Drum Shape
Drum
Operating type
Continuous Operating
Warranty
1 Year
Transport Package
Wooden Case
Specification
2030*630*980
Trademark
Newlink
Origin
China
HS Code
8422303090
Production Capacity
200 Sets/Years

Product Description

Automatic powder ribbon blending machine Introduction
The impeller and screw ribbon blender install with of inner and outer mixing blades and screw belts installed on the mixing shaft to drive the materials in the barrel body, so that the agitator turns the materials in the maximum range in the barrel body. In terms of the structure of agitator, the screw belt is designed to be the inside and outside, and the right and the left are opposite to each other. When the agitator is working, the inner screw belt drives the material near the shaft to do axis rotation, and the axial drive is from inside to both sides. The outer screw belt drives the material near the barrel wall to do axis rotation, and the axial drive is from both sides to the inside, which results in the convective circulation and shear infiltration of the material in the barrel. Complete material in a short time of rapid and uniform mixing.
Usage :
The Blade blender used in food, chemicals, biology, aquaculture, ceramics, refractory materials, plastics, solid pulp (powder and glue) mixing.
Working principle
The impeller screw mixer is made of inner and outer diameter screw blades mounted on the mixing shaft to drive the materials in the barrel body, so that the agitator can turn the materials in the maximum range in the barrel body. In the structure of agitator, the clearance between the blade and the barrel is small, and the screw is designed to be inside and outside and left and right opposite to each other. When the agitator works, the inner screw drives the material near the shaft to do axis rotation, and the axial drive is from inside to both sides. The outer screw drives the material near the barrel wall to do axis rotation, and the axial drive is from both sides to the inside, which results in the convective circulation and shear infiltration of the material in the barrel. Complete material in a short time of rapid and uniform mixing.
Feature:
1, the machine has a unique structure, stable operation, reliable quality, low noise, easy installation and maintenance.
2, the mixing speed is fast, the mixing uniformity is high, especially the viscosity, the screw belt can be installed scraper, the viscous material also has a good mixing effect.
3, under the mixed requirements of different materials, using different spiral belt structure, can be heated, dry jacket type.
4. The barrel cover can be made into a fully open door, and the body can also be opened with a loose cleaning door, so as to facilitate the cleaning and replacement of the equipment.
Technical parameter
Equipment Model Effective volume
(L)
Powder
(kw)
Rotary speed(r/min) Overall dimensions
(mm)
Weight
( Kg)
NP-100 35-60 2.2 58 1190×740×770 380
NP-200 60-120 3 53 2030×630×980 450
NP-300 100-150 5.5 53 2320×730×1130 560
NP-600 180-300 7.5 49 2800×920×1320 680
NP-1000 350-600 11 42 3180×1020×1550 1200
NP-1500 550-800 15 42 3310×1120×1640 1600
NP-2000 700-1000 18.5 42 3750×1290×1820 2200
NP-3000 1000-1500 18.5 37 4220×1400×1990 3300
NP-4000 1500-2000 30 37 4220×1500×2100 3800
NP-5000 2000-3000 30 31 4700×1610×2260 4300
NP-6000 2200-3500 37 31 4420×2150×2470 5500
DPH-8000 3000-4200 45 27 5520×2960×2720 6800
NP-10000 3200-5000 55 27 5720×3010×2840 7900
NP-12000 3600-6000 55 23 5840×3540×2940 8800
NP-15000 5000-8000 75 23 6000×3040×3070 9500
NP-20000 8000-10000 90 19 6100×2300×3150 13500
NP-30000 10000-15000 135 17 6500×2500×3500 15000
