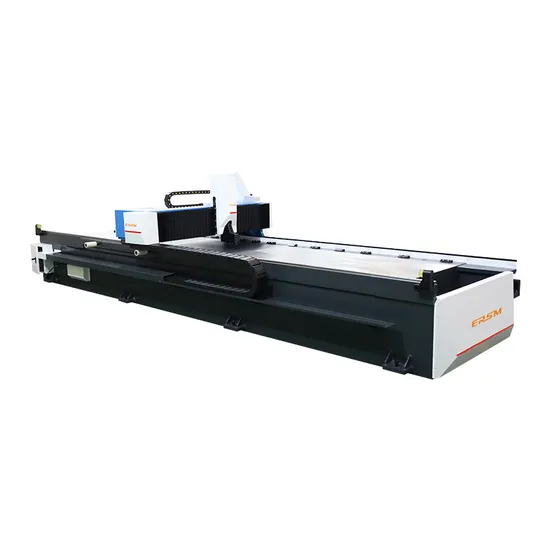

Intelligent Obstacle Avoidance 5-Axis Control System Horizontal Double-Drive V Grooving Machine

Product Description

Product Description
1.The crossbeam is driven by double servo motors, equipped with double high-power planetary reducer, running smoothly.
2.Double rack and pinion drive with servo driver, accurate positioning.
3.Five axis control system, with industrial touch screen, monitors real-time equipment status.
4.Support fixed-point grooving,processingof dissimilar work
Product Parameters

Model	GV-1525	GV-1532	GV-1540	GV-1560
Processing Length	2500 mm	3200 mm	4000 mm	6000 mm
ProcessingWidth	1250/1500 mm	1250/1500 mm	1250/1500 mm	1250/1500 mm
Processing Thickness	0.4-5.0 mm	0.4-5.0 mm	0.4-5.0 mm	0.4-5.0 mm
Minimum edge distance	8 mm	8 mm	8 mm	8 mm
Ganty(X1-axis&X2-axis)	0-150 m/min	0-150 m/min	0-150 m/min	0-150 m/min
Toolholder(Yl-axis)movement	0-60 m/min	0-60 m/min	0-60 m/min	0-60 m/min
Movable clamping(Y2 axis)	0-60 m/min	0-60 m/min	0-60 m/min	0-60 m/min
Tool holder(Z-axis)up and down	0-10 m/min	0-10 m/min	0-10 m/min	0-10 m/min
Repeated positioning error of positioning axis	0.015 mm	0.015 mm	0.015 mm	0.015 mm
Minimum resolution of positioning axis	0.001 mm	0.001 mm	0.001 mm	0.001 mm
Table flatness	0.03 mm	0.03 mm	0.03 mm	0.03 mm
Length	4400 mm	5100 mm	5900 mm	7900 mm
Width	2100/2350 mm	2100/2350 mm	2100/2350 mm	2100/2350 mm
Height	1550 mm	1550 mm	1550 mm	1550 mm

Detailed Photos
FAQ
1. Who are we?
A:We are based in Jiangsu, China, start from 2011,sell to Southeast Asia(20.00%),Eastern Europe(20.00%),
WesternEurope(10.00%), North America(10.00%), Northern Europe(5.00%), Central America(5.00%),SouthAmerica(5.00%),Eastern
Asia(5.00%),South Asia(5.00%),Oceania(5.00%),Southern Europe(5.00%),Africa(3.00%),MidEast(2.00%). There are total about 11-50 people in our office.
2.Which payment terms you can accept?
A: We can accept flexible payment include Bank Transfer, LC, DP, West Union, Paypal, or Combination terms as negotiation.
3.Which shipping way can you provide?
A: We can provide shipping by sea, by air, by express and etc according to customer requirements.
4.How to place order?
A: When you are ready to order, please contact
us for confirm the suitable solution & plan & model. What cannot be ignored is you should provide a copy purchase order to ensure that your order is processed properly.
5.Do you have an inspection procedure for the product?
A: Yes, We have a strict inspection of product quality and packing.

---
