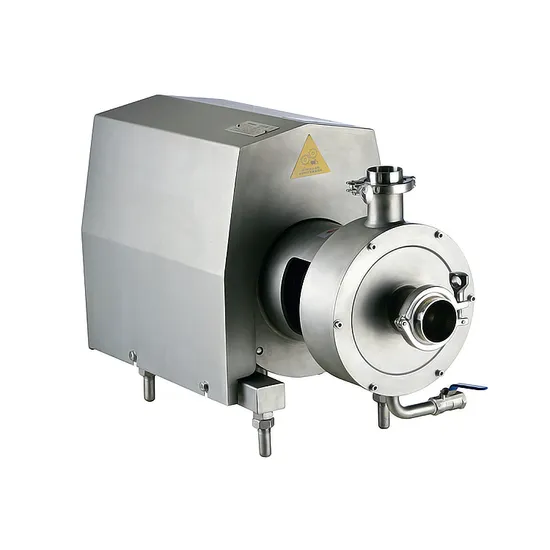

Single Stagehigh Inline High Shear Homogenizer Emulsifying Pump

Product Description

SUS304 stainless steel sanitary inline emulsifier mixer
1.SUS304 stainless steel sanitary inline emulsifier mixer can process large quantity of material with various viscosity, very suitable for industry online production.
2.It has the character of better emulsification and better efficiency.In complete range of articles,to meet the different processing option. 3.There are different kind of stainless steel lik 304,316L for different PH requirement. 4.Adopting double mechanical seal,also can match up the water protector. 5.SUS304 stainless steel sanitary Homogenizer pump emulsifying pump has many kind of connection like rigid connection,flexible connection,etc.

Profile type	Best price high performance vacuum mixing pumps cosmetics
material	SS304 or SS316L
Capacity	0-130T (Customized)
pressure	0-2Bar
Viscosity	1-1000000pas
rotors teeth	Fine/Middle/rough
temperature	0-100 celsius degree
installation	Movebale or Fixed
connection	Clamp union flange
motor type	Normal	Ex-proof	inverter
Speed	0-3400RPM

Model	L2(mm)	L(mm)	H(mm)	A(mm)	H2(mm)	H3(mm)	DΦ(mm)	BΦ
RAY-1-80	74	528	367	240	180	126.5	38	32
RAY-1-100	74	528	367	240	180	126.5	38	32
RAY-1-130	76	611	413	290	202	135	51	38
RAY-1-140	80	660	490	340	222	152.5	63.5	51
RAY-1-165	80	700	490	340	222	152.5	63.5	51
RAY-1-180	92	847	554	382	260	167.5	63.5	63.5
RAY-1-185	92	847	554	382	260	167.5	76.2	63.5
RAY-1-200	96.5	957	585	410	290	181	76.2	63.5
RAY-1-210	109	1035	659	460	310	186	89	76.2
RAY-1-230	115	1090	705	460	323	196	102	89
RAY-1-245	132	1160	750	570	370	204	102	102

Technical Parameters
Model	capacity (T/H)	Speed(RPM)	out Pressure(bar)	power(KW)
RAY-1-80	0-1.5	2900/3400	≤2Bar	1.5
RAY-1-100	0-3	2900/3400		2.2
RAY-1-130	0-4	2900/3400		4.0
RAY-1-140	0-5	2900/3400		5.5
RAY-1-165	0-8	2900/3400		7.5
RAY-1-180	0-12	2900/3400		11
RAY-1-185	0-18	2900/3400		15
RAY-1-200	0-25	2900/3400		22
RAY-1-210	0-35	2900/3400		30
RAY-1-230	0-50	1450/1700		45
RAY-1-245	0-75	1450/1700		55
We can customize the equipment according to customer requirements.

1.Q: Are you manufacturer or trading company?

A: RAYEN is a professional manufacturer.

2.Q: How could we confirm the details of the products?

A: RAYEN will provide the detail drawings for you to confirm.

3.Q: How long the warranty will be?

A: 1 Year warranty.

4.Q: Do you take L/C?

A: Yes, we accept Western Union, T/T and irrevocable L/C payable

5.Q: Can we become your distributor in our country?

A: Yes, we very welcome you! More details will be discussed if you are interested in being our agent.

---
