US$6,000.00-9,000.00
|
1 Set
(MOQ)
|
Basic Info.
Voltage
Accroding to Client′s Need
Power Supply
415V/380V/230V/220V
Motor Power
4kw/5.5kw/7.5kw
Color
Blue, Red, Yellow,etc.
Transport Package
Plywood Case
Specification
Hydraulic/pneumatic
Production Capacity
20000sets/Year
Packaging & Delivery
Package Size
245.00cm * 100.00cm * 250.00cm
Package Gross Weight
900.000kg
Product Description

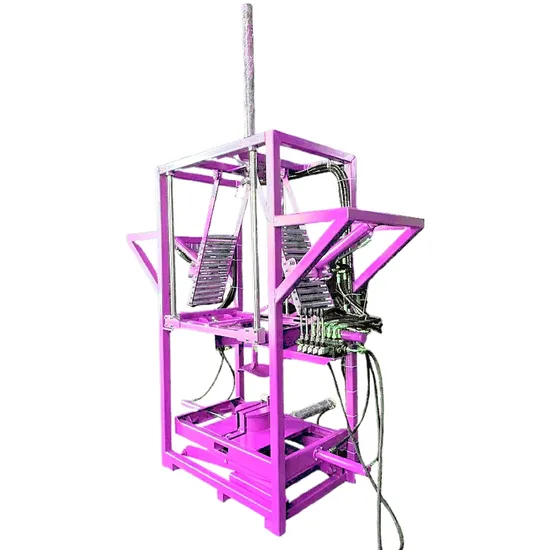

Product Description Car Tyre Press doubling tripling machine:
It is mainly use for waste tyres doubling or tripling together so that to make easy and more quantity transportation.
There are hydraulic and pneumatic two types.
Product Parameters Hydraulic and Pneumatic tyre tripling machine:
| Model | H4800 | P3800 |
| Drive type | Hydraulic | Pneumatic |
| Power supply required | 220V/380V/415V/ 3-phase; For motor, Solenoid valve, travel switch,etc. | 100V--230V, single phase; For Solenoid valve, travel switch onl |
| Motor power | 4kw/5.5kw/7.5kw based on the power supply | No motor power unit |
| Pressure source | Hydraulic pump | Air compressor |
| Working pressure | 10Mpa | 0.8MPa |
| Cylinder quantity | Hydraulic cylinders- 9pcs | Air cylinders-9pcs |
| Max tyre diameter | 105cm | 95cm |
| Max tyre width | 30cm | 30cm |
| Tyre tripling quantity | 3-5 pcs | 2-3pcs |
| Main structure | Host frame, hydraulic system, motor power station | Host farme, air system, control system |
| Operation method | Handle rod to control the hydraulic oil | Control panel buttons to control the air direction |
| Machine dimension about | 2400*850*3570mm | 2210*800*3300mm |
| Packing size about | 2500*920*2500mm | 2400*850*2500mm |
| Weight: | 850kg | 730kg |
Detailed Photos
Main Features 1, Pneumatic doubling tyre tripling machine with air supply from compressor, it can press 3-5 tyres together;
2, Be easily operated by one man, and the work efficiency is high;
3, Low failure rate, long time working life.
Packaging & Shipping FAQ 1, What types of this manchine can you supply?--- Hydraulic and pneumatic two types.2,What is the lead time normally?-- About 25 working days after getting the deposit money from client;3,What is the payment terms?-- T/T. 50% deposit in advance and 50% balance before shipment;4,How about the shipment method?-- Normally, plywood case packing and do LCL shipment.5, How about your warranty and after-sale service?---The warranty is 1 year, if any part broken within one year, we will send the parts to client by express.If there is question about the operation or using, we will give technical support to guide client to do well.
>>
