Laboratory Twisting Machine For Yarn

Product Description

Product Description

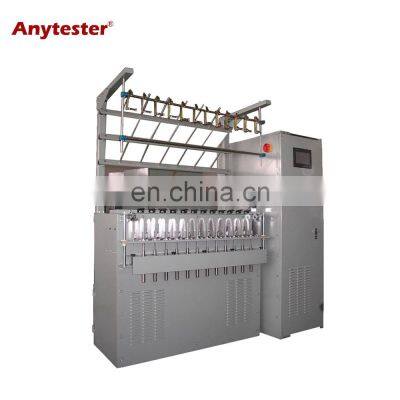

Product DescriptionAT208 Laboratory Twisting Machine is part of the mini spinning system. It's mainly used in university, researching center etc. and it is used to twist plied yarn into folded yarns through ring spinning and twisting.Features★ It adopts touch screen and PLC control.★ Imported frequency converter of high efficiency.★ Mini type machine, save researching cost and easy to operate and maintain.★ Can be used for cotton fiber or wool fiber (alternative) with different partsSpecificationModelAT208Spindle number6 or 12Spindle length205mmSpindle speed5000~20000 RPMSpindle gauge42mmRoller diameter25mmRing diameter38/42/45mmOutput capacity0.25 ~ 1kg/hMax. output speed42m/minTwist range1200 ~ 2000 twist/mPower220V/380V, 50/60Hz, 850WDimension1200*800*1600mmPacking & DeliveryPackagingSize1200*800*1600mm Packaging DetailsThe normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.PaymentPayment ItemT/TEXW 30% T/T in advance, paid the balance before shipmentFOBCFR(C&F) 30% T/T in advance,paid the balance against copy of B/LCIF30% T/T in advance, paid the balance before shipmentFOBCFR(C&F) 30% T/T in advance,paid the balance against copy of B/LCIFL/CL/C amount above 50,000 usd, we can accept L/C at sightWest UnionAmount lower than 50,000usdDelivery Time7~10 days after receiving payment for one containerRelated ProductsAT207 Lab Two-for-one Winding MachineAT202 Laboratory Carding Machine AT209A Lab Cone Winding MachineAT206 Laboratory Ring Spinning MachineOur CompanyHistorySince 1982 with more than 20 years' experienceWarrantyTwo Year Warranty for whole productTrainingVideo and user manual for trainingOnsite serviceInstallation and training service is availableTesting serviceFree sample testing before order is availableLead time15 working days lead time for most productContacting usERIC QINWebsiteMobile Phone+86 188 5510 5986Whatsapp+86 188 5510 5986Skype eric-qlkWechat+86 188 5510 5986

---
