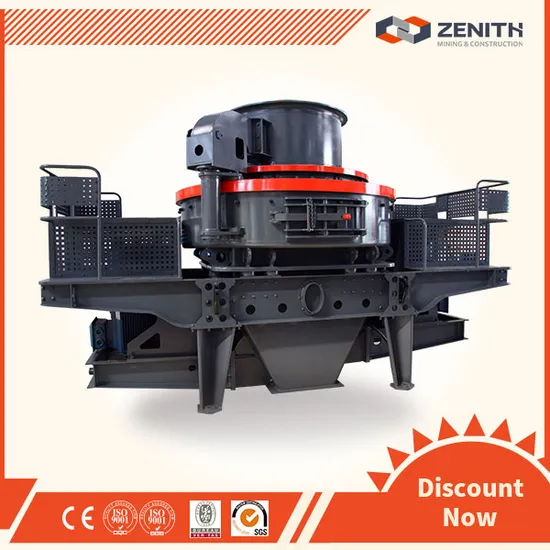

Zenith VSI Vertical Shaft Impact Crusher, VSI Sand Maker

Product Description

Zenith VSI Vertical Shaft Impact Crusher , VSI sand maker Introduce

The Vertical Shaft Impact Crusher integrates three crushing modes, and can continuously work for 720 hours. Higher crushing chamber, greater crushing impact. During the parts and material procurement, production and processing, the quality is strictly controlled. Wearing parts is optimally allocated for longer service life.
Hydraulic autonomous system: Convenient maintenance, high performance, low failure rate. The whole frame adopts elastic reinforcement technology, eliminating the problems like easy fracture of motor frame.

Vertical Shaft Impact Crusher Advantages and Features

1. Vertical Shaft Impact Crusher Excellent performance and long service time
2. Special light oil lubracation systems ensures the temperature to be within 25.
3.Brand new automatic protection device provides the machine with vibrating, oil filtering and warning system;
4.New type oil filting system ensures the bearings and other transmission system are not abraded and peolong their service time;
5.Choice wearble materials prolong the service time of the machine by 40%. So the cost is lowerd by more than 40%.


Vertical Shaft Impact Crusher Working Principle

Material falls down to impeller cavity. Under great centrifugal force, it hits material that is flowing around the impeller as an umbel. After hitting each other, they force a vortex between impeller and shell and hit each other for several times, and finally smaller stone comes out and forms closed cycle. The required end product shape is controlled by the screen equipment.

Vertical Shaft Impact Crusher Application

1. Artificial sand making for cobble, mountain rock(limestone, granite, basalt, diabase, andesite), ore gangue and stone chips.
2. Production for building aggregate, highway surface material, subcrust material, asphalt concrete and cement concrete aggregate.
3. Sand making production and aggregate shaping in project fields such as hydroelectric, senior road, highway, high speed railway, passenger special line, bridge, airfield runway, municipal project and high-rise building.
4. The forepart fine crushing craft of ore grinding in mine industries and material crushing in building material, metallurgy, chemical industry, mine, anti-fire material, cement and grinding material industries.
5. Suitable for environment projects such as high abrasiveness and secondary breaking, thermal power, desulphuration in metallurgical industries, steel slags and construction wastes.
6. Production for glass, quartz sand and other high purity materials.

Vertical Shaft Impact Crusher parameters:

Model	Feed at center&sides	Feed at center	Soft Material	Hard Material	REV (r/min)	Power (kw)	Motor Model	Machine Size (mm)
	Capacity (t/h)		Max.Feeding (mm)
B-7611	120-180	60-90	35	30	1700-1890	4-55×2	Y250M-4/55	4100×2250×2258
B-8518	200-260	100-130	40	35	1520-1690	4-90×2	Y280M-4/90	4140×2280×2425
B-9526	300-380	150-190	45	40	1360-1510	4-132×2	Y315M-4/132	4560×2450×2780
B-1140	450-520	225-260	50	45	1180-1310	4-200×2	Y315L2-4/200	5100×2690×3200

---
