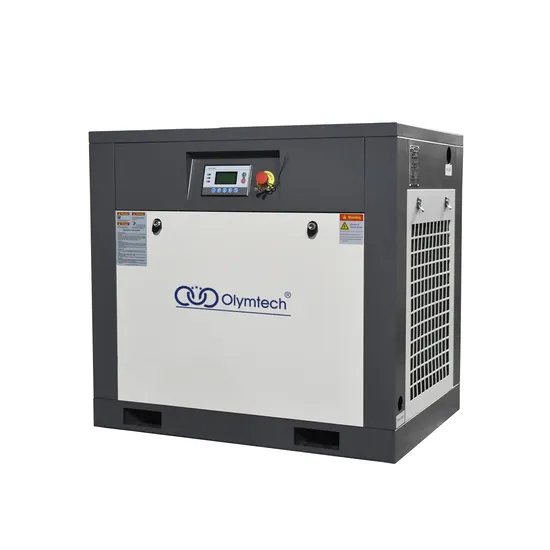

Olymtech China Best Quality 15kw 20HP 13bar Belt Drive Screw Air Compressor

US$1,800.00 1 Unit (MOQ)

Basic Info.

Model NO.
TF15-13
Lubrication Style
Lubricated
Cooling System
Air Cooling
Power Source
AC Power
Structure Type
Closed Type
Installation Type
Stationary Type
Type
Twin-Screw Compressor
Free Air Delivery
1.80(M3/Min)
Drive Mode
Belt Drive
Pressure
13bar
Electricity
380V/50,60Hz/3pH
Air End
Hanbell
Motor Power
15kw(20HP)
Transport Package
Carton Case with Wood Pallets
Specification
CE, ISO, TUV, CG
Trademark
Olymtech
Origin
Guangdong, China
HS Code
8414804990
Production Capacity
5000pieces/Year

Packaging & Delivery

Package Size
1190.00cm * 900.00cm * 1160.00cm
Package Gross Weight
370.000kg

Product Description

Product Description
Item Olymtech 5.5kw Screw air compressor Piston air compressor
Consumption Compare with piston air compressor, screw air compressor more energy saving Energy loss because mechanical wearing. Low speed, high comsumption
Consumbale parts Air filter/Oil filter/Air/Oil Separator much consumable parts, piston, ring, valve, etc
Noise Low noise, cabinet with sound proof enclosure no cabinet, very noise
Operation and maintenance Automactically, easy operation and maintenance, controller with alarm function, suit for unattended operation maintenance complicated
Compressed air quality Low discharger temperature, oil content in the compressed air is ≤3ppm higher discharger temperature, no air/oil separator, high oil content in the compressed air
Durability Two rotor no wearing, stable air delivery, F.A.D and efficiency will not reduce although use a period of time main parts easy to wearing, therefore F.A.D and efficiency will reduce after use a period of time

Item Technical Parameters
Model TF15-8 TF15-10 TF15-13
Power 15KW
F.A.D 2.0m3/min 1.9m3/min 1.8m3/min
Medium Air
Rated pressure 0.8Mpa 1.0Mpa 1.3Mpa
Cooling method Air-cooled
Transmission method Belt drive
Air discharge temperature Ambient temperature+15ºC
Control mode Microcomputer control system
Start mode Y-△ Start
Air inlet temperature 0~46ºC
Ambient temperature -5~45ºC
Air inlet pressure Natural air 1.033Kg/cm2
Motor rotation speed 2980r/min
Motor protection level IP23
Motor insulation level F level
Motor service factor 1.15
Power supply 380V-50Hz-3Ph
Maximum relative humidity 0.95
Air outlet connection Rp3/4
Dimension 1080x750x1000mm
Net weight 306KG
Noise level 68±2dB (A)

FAQ
Q1: Why customer choose us?
O: Olymtech Technology Development Co, Ltd is a professional manufacturer for air compressor and after treatment equipment. We have more than 20 years experience in producing and exporting air compressor, air dryer and air filter. Q2: Are you a manufacturer or trading company? O: Our factory is located in Guangdong China, we have research and develop center, advanced processing equipment, professional technicians, rich experience workers and after-sales team to offer good quality products and good service to our customers. We also can provide you the OEM&ODM service. Q3: What's your delivery time? O: Generally 10 days, if urgently order, pls contact our sales in advance Q4: How long is your air compressor warranty? O: One year for the whole machine when the compressor leave our factory. Q5: How long could your air compressor be used? O: Generally, more than 10 years Q6: What's payment term? O: T/T, L/C, Paypal and etc. Also we could accept USD, RMB, Euro and other currency (Pls contact our sales for more information Q7: How about your customer service? O: 24 hours on-line service available Q8: How about your after-sales service? O: 1. Provide customers with installation and commissioning online instructions. 2. Well-trained engineers available to overseas service 3. World wide agents and after service available
