Product Description
Product Description

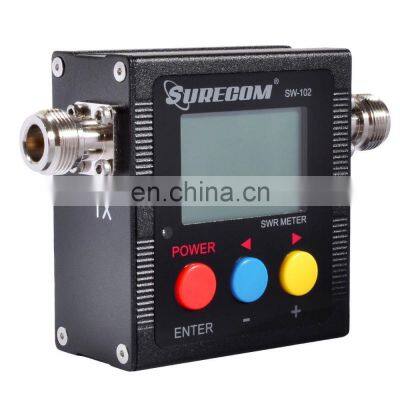

Surecom SW-102 125-525Mhz Digital VHF/UHF Antenna Power SWR Meter 2-Way RadioProduct Description VSWR. Forward and reflected power direct digital readout, without any calibration.Maximum measurable power range up to 120W.low insertion loss (0.3 decibels or less) structure allows it to be permanently connected.Build in Frequency counter .All Funtion display ( Frequency,Power , SWR,FW,RW,Battery voltage)Feature & SpecificationFrequency range: 100 - 520MHzMeasurable power range: 0 - 120WInput Frequency counterMaximum power: 120WImpedance: 50ΩSize: W 76 X H 77 X D35 mm.Weight: <220 gramsBattery : 3.7V Li-ion Rechargeable BatteryInterface: N-J Interface MAX. Power in120 WV.S.W.R1.00~19.9Frequency RangerCOVER:100MHz~520MHzInsertion Loss< 0.15dB(VHF) , < 0.25dB(UHF)Temperature0℃~60℃Frequency counterYesBattery Voltage DisplayYesBattery Build-in3.7V 900MAH (14500 Li-ion Rechargeable)Auto Power Off1-9 minsSize66*68*37 (mm)Charger in5V (micro usb)BacklightAUTO OFF 1-9 minsInterface (in and out )N(SL16)Weight220g (include battery) Check the Output Power of your transceiver :Connect to "TX" on Radio output and dummy Load to "ANT". Proper adaptor/cable is required if your device has different type of connectors.Check the S.W.R. of your Antenna :Connect to "TX" on Radio output and Antenna to "ANT". Proper adaptor/cable is required if your device has different type of connectors.Note: Damage your radio when No Connect Antenna and DummyPower ON/OFFPress 2 second the [Red button] to power on or power offFuntion menu display:1) Adj. RF Forward %2) Adj. RF reward %3) Adj. frequency counter time base.4) Adj. RF Power %5) Adj LCD dim of light6)Adj. power off time7)Adj. Powe test mode ( 0 for 1-10W hand held radio , 5 for Mobile Radio 10-100W)Setting Memory SAVE:1. Press MENU [Blue button]2. Press F1 [Red button)(Select 1-7 Funtion)3. Press [Blue button] ( - ), [Yellow button] (+)4. Press the [Red button ]for 2 seconds5. Press the [Blue button] to SAVE and EXIT MENU (V3.3)SettingPresetUnit1Adjustment Forward-99 to +990Fine Tune Level %2Adjustment Reverse-99 to +990Fine Tune Level %3Adjustment Time Base-99 to +990Frequency CounterOSC Time Base4Adjustment Power Level-99 to +990Fine Tune Level %5LCD DIM (Back Light Time)0 to 91"0" is ON,1 min to 9 mins6POWER OFF0 to 93"0" is ON,1 min to 9 mins7Mode (Power "Watt" Measurement )0 to 950 for handheld Radio 1-10W5 for Mobile Radio 10W-120W* Supplier, the product will add functionality without having to give noticePackage includes:1 x SURECOM SW-102 Power SWR Meter1 x Power PSU 100-240V1 x Charger Cable1 x English Users ManualPackaging & ShippingPackage: Normally we use the standard exporting packaging. We also can according to clients' request . Shipping : 1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier we are co-operating at present.2. By Air: Delivery from the Shanghai airport to customers’ destination city air port.3. By Sea: Delivery from the Shanghai sea port .Company InformationTZT has been speciliazing in Business & Industry,Hobbies & Toys,CNC Products and Health care supplies for over 5 years.We committed to enhance customer satisfaction by continually improving the process with a vision of expertise in the field. Aiming to provide high quanlity products and great service for buyer,we are strict on product quanlity control and offer instant communication service.Welcome to contact us!Our Advantages:- Source only the best consumer goods and ensure the highest quality.- Streamline the buying and payment process, and make it as easy as possible.- Help the customers all over the world discover products and manufacturers in China.- The Shortest order processed time and speed delivery FAQQ1. Can I have a sample order?A: Yes, we welcome sample order to test and check quality. Q2. What about the lead time?A: Samples arrived often need 3-5 days. Q3. Do you have any MOQ (minimum order quality)limit?A: Low MOQ, 1pc for sample checking is available. Q4. How do you ship the goods and how long does it take to arrive?A: We often ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping is also optional. Q5. How to proceed an order?A: Initially, let us know your requirements or application. Besides, We quote according to your requirements or our suggestions. Thirdly, customers confirms the samples and places deposit for formal order. Finally, We arrange the production. Q6. Is it acceptable to print my logo on the product?A: Yes. Please inform us formally before our product and confirm the design firstly based on our sample. Q7: Do you offer guarantee for the products?A: Yes, we offer one-year warranty for our products. Q8: How to deal with the flaw?A: Our products are produced in strict quality control system and the percent of pass is often maintained over 99.8%Contact usPlease do not hesitate to contact me if you need any further informationWhatsapp/Tel/Wechat: 8619902906050Web: Address: 5H,Buidling B,Yueshang Center, Longhua Area,Shenzhen, China (Mainland)
>>
