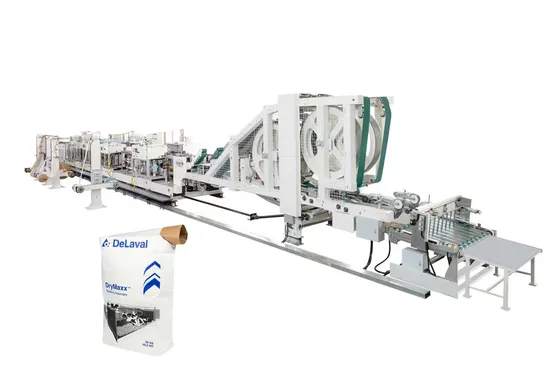

Tuber and Bottomer Valve Paper Bag and Paper Sack Making Machine

Product Description

Basic Information

YD- 5860 Tuber:

Speed:450pieces /min

Bag length:450mm~1250mm

Bag width:300mm~600mm

YD- 5875 Tuber:

Speed:400pieces /min

Bag length:410mm~1650mm

Bag width:300mm~750mm

YD-2018-18 Bottomer:

Speed:200pieces /min

Bottom width:90mm~170mm

Bag length:260mm~1000mm

Bag width:300mm~600mm

YD-2818 Bottomer:

Speed:300pieces /min

Bottom width:90mm~180mm

Bag length:190mm~1000mm

Bag width:300mm~600mm

YD-2825 Bottomer:

Speed:300pieces /min

Bottom width:90mm~250mm

Bag length:190mm~1360mm

Bag width:300mm~720mm

Product Description
Product Overview
YIDENG manufacturing the whole production line, Tuber machine, Conveyor Belt, Bottomer machine, and Palletizer(still in test).
The machine could produce many different kinds of paper bags, and paper bag with one PP/PE film inside. Like Cement paper bag, Multiwall paper Sack, Dry Building Mixes material sack, Sack for Motar, Sand, Brick, Tile adhesive, Gypsum, Grouts and so on, and small part of Food paper Bag.
Product ProcessTuber Machine
1. Station of putting roll paper
2.Station of putting PP/PE film
3. Corrective action part
4. Positioning and punching part
5.Tension and stretch part
6. Stepped cutting part
7. Transverse gluing part
8. Longitudinal gluing part
9. Forming part
10.Flush cutting traction and tearing part
11. Finished bag part (Counting and packet)
12.Electric cabinet control box
Length×width×Height:36M×3.8M×3.1M
Total power:70KW
Weight:45T
Speed:450 pcs per/minBottomer Machine

---
