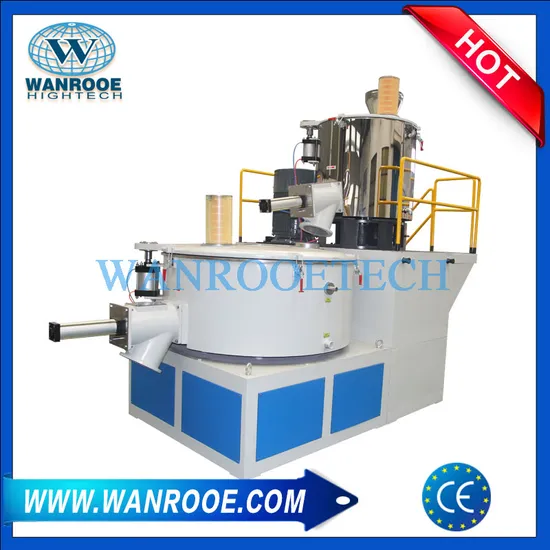

Plastic PVC Resin Powder Mixer Unit Machine for Granule/Pipe/Profile Making

Product Description

Plastic PVC Resin Powder Mixer Unit Machine for Granule/Pipe/Profile Making
Descrition:
1, the inside barrel of heating & cooling mixer are made of stainless steel; The outside baitel of heating mixer are also in stainless steel, it can resist the corruption of DOP and there is a 550mmstainless steel material adding bucket up the pot cover.
2, the heating mixer is equipped with 3-PC - type blades: The cooling mixer is equipped with carrying - pole type blades.
3, electric beating device: Equipped with temperature tesing device & warm accuse table.
4, the main roller is sealed in 88888
5, the digital display (made in changzhou)
6, Siemens contractor
7, the opening & material unloading of the cover adopts liquid pressure control system.
8, decompression starting device: It will decompress the electirc pressure when we start the machine, it can protect the electric net.
9, standard electric box 1 PC; Step 1 PC, banisters bandrail 1 unit, air compressor machine 1 PC
Competitive advantage:
1. Composed of high speed hot mixer, cold mixer...
2. Mixing fast and even
3. Easily cleaning,
Technical Parameters:

Model	Total volume(L)	Effective volume(L)	Motor power(kw)	Main shaft speed(rpm)	Heating method	Discharge method
PNCM-50/100	50/100	35/75	7/11/5.5	750/1500/180	Self-friction or electric heating	Pneumatics
PNCM-100/200	100/200	70/140	11/22/7.5	650/1300/150
PNCM-200/500	200/500	140/250	30/42/11	550/1100/90
PNCM-300/600	300/600	210/420	40/55/11	475/950/90
PNCM-500/1000	500/1000	350/700	47/67/15	430/860/60
PNCM-100/200	100/200	560/1100	60/90/22	370/740/50

Details:
Our Service 1. One year guarantee for whole machine 2.24 hours technical support 3. Our engineers can provide service overseas. The service is free, but the charge of round air-tickets, food and hotel is to the customer's account. 4. After a year, we can instruct you how to maintain the machine, and spare parts are provided with the best price. 5. We also can provide training service which help operators handle the machine well

---
