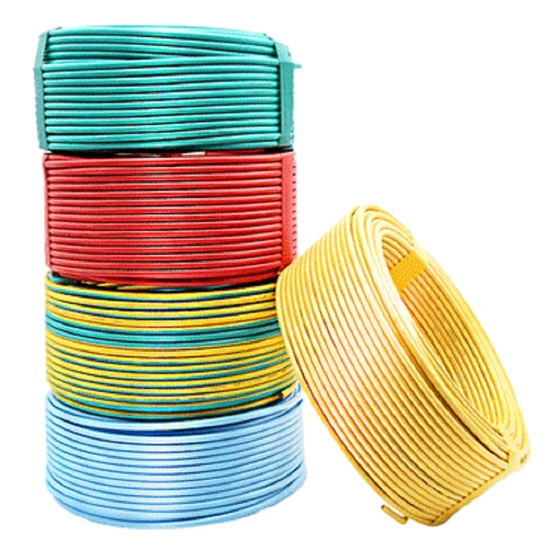

Durable Rvv Series Cable for Long-Lasting and Stable Power Transmission

Product Description

The full name of RVV wire is copper core PVC insulated PVC sheathed flexible wire, also known as lightweight PVC sheathed flexible wire, commonly known as soft sheathed wire, which is a type of sheathed wire. Mainly used for power lines, control lines, and signal transmission lines in electrical appliances, instruments, electronic equipment, and automation devices. Specifically, it can be used for anti-theft alarm systems, building intercom systems, etc.
RVV full name
PVC insulated PVC sheathed flexible cable.
The meaning represented by letters
The letter R represents a flexible cord
The letter V represents insulation polyvinyl chloride (PVC)
RVV wires are the most commonly used cables in weak current systems, with an indefinite number of core wires, two or more, and PVC sheaths on the outside. There are no special requirements for the arrangement of core wires.
The function of the protective sheath
For example, rvv2 * 0.5 refers to two wires with an area of 0.5 square millimeters and an outer sheath. The purpose of the sheath is to
1. Protect the inner protective layer of the cable from mechanical damage and chemical corrosion;
2. Enhance the mechanical strength of the cable. Product Parameters
Product Name: RVV Cable, RVV Wire and Cable
Rated voltage: 300V/500V.
Conductor: multi stranded copper conductor, in accordance with GB/T 3956 Class 5 (equivalent to IEC60228.5).
Insulation: Polyvinyl chloride mixture (PVC).
Sheath: Flexible polyvinyl chloride mixture (PVC), gray (RAL7001).
Core wire identification: ≤ 5 cores, colored core wire; Black core wire with white numerical code, yellow green ground wire.
Core number: 2-5 cores, 7-36 cores (products outside the CCC catalog, without CCC certification).
Cross sectional area: 0.75-2.5mm ², 0.5, 2.5-35mm ² (products outside the CCC catalog, without CCC certification).
Test voltage: 2000V, 5 minutes.
Insulation resistance:>200M ohms x KM.
Operating temperature: -30~+70 ºC.
Bending radius: 15 times the outer diameter of the cable.
Flame retardant properties: IEC 60 332.1.
Reference standard: GB 5023 IEC60227,HD VDE21.5 S3.
Packaging specifications: 100m, 500m, 1000m.

Number of cores x standard cross-section mm	Specifications	Insulation thickness specified value mm	The specified thickness of the sheath is mm	At 20 ºC, the conductor resistance Ω/km shall not exceed
				Copper core	Galvanized copper core
2×0.5	16/0.20	0.5	0.6	39.0	40.1
2X0.75	24/0.20	0.6	0.8	26.0	26.7
2X1	32/0.20	0.6	0.8	19.5	20.0
2X1.5	30/0.25	0.7	0.8	13.3	13.7
2X2.5	49/0.25	0.8	1.0	7.98	8.21
3×0.5	16/0.20	0.6	0.6	39.0	40.1
3X0.75	24/0.20	0.6	0.8	26.0	26.7
3X1	32/0.20	0.6	0.8	19.5	20.0
3X1.5	30/0.25	0.7	0.9	13.3	13.7
3X2.5	49/0.25	0.8	1.1	7.98	8.21
4X0.75	24/0.20	0.6	0.8	26.0	26.7
4X1	32/0.20	0.6	0.9	19.5	20.0
4X1.5	30/0.25	0.7	1.0	13.3	13.7
4X2.5	49/0.25	0.8	1.1	7.98	8.21
5X0.75	24/0.20	0.6	0.9	26.0	26.7
5X1	32/0.20	0.6	0.9	19.5	20.0
5X1.5	30/0.25	0.7	1.1	13.3	13.7
5X2.5	49/0.25	0.8	1.2	7.98	8.21

---
