US$10,000.00-30,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Application Area
Chemical
Control System
Button Control
Cooling Method
Air Cooling
Heating Method
Electric Heating
Main Material
Carbon Steel, Stainless Steel
Safety Features
Emergency Stop Button, Overload Protection, Safety Lock
Temperature Control
Without Cooling System
Name
Chemical Powder Granules Mixer Blender Machine
Operating Type
Continuous Operating
Transport Package
Wooden Case
Production Capacity
50sets/Month
Product Description
Chemical Powder Granules Mixer Blender Machine For Sale Description:
working principle:
The two-dimensional mixer is mainly composed of three parts: the drum, the swing frame and the frame. The rotating drum is mounted on the swing frame and is supported by four rollers and axially positioned by the two retaining wheels. Among the four supporting rollers, two of the driving wheels are dragged by the rotating power system to rotate the rotating drum. The swing frame is driven by a set of crank swing mechanism, the crank swing mechanism is on the frame, and the swing frame is supported by the bearing assembly on the frame.
Performance characteristics:
The drum of the EYH two-dimensional mixer can perform two movements at the same time, one for the rotation of the drum and the other for the swing of the drum with the swing frame. The mixture is rotated, inverted, and mixed with the drum in the drum, and the mixing motion of the left and right back and forth occurs with the swing of the drum. Under the joint action of the two movements, the material is fully obtained in a short time. the mix of. The EYH two-dimensional mixer is suitable for the mixing of all powder and granular materials.
Chemical Powder Granules Mixer Blender Machine For Sale Specification:
Model/Specification | Volume (L) | coefficient of charge | Loading capacity (kg) | Dimension (mm) | Power (kw) |
A | B | C | D | M | H | | |
EYH100 | 100 | 0.5 | 40 | 860 | 900 | 200 | 400 | 1000 | 1500 | 1.1 | 0.75 |
EYH300 | 300 | 0.5 | 75 | 1000 | 1100 | 200 | 580 | 1400 | 1650 | 1.1 | 0.75 |
EYH600 | 600 | 0.5 | 150 | 1300 | 1250 | 240 | 720 | 1800 | 1850 | 1.5 | 1.1 |
EYH800 | 800 | 0.5 | 200 | 1400 | 1350 | 240 | 810 | 1970 | 2100 | 1.5 | 1.1 |
EYH1000 | 1000 | 0.5 | 350 | 1500 | 1390 | 240 | 850 | 2040 | 2180 | 2.2 | 1.5 |
EYH1500 | 1500 | 0.5 | 550 | 1800 | 1550 | 240 | 980 | 2340 | 2280 | 3 | 1.5 |
EYH2000 | 2000 | 0.5 | 750 | 2000 | 1670 | 240 | 1100 | 2540 | 2440 | 3 | 2.2 |
EYH2500 | 2500 | 0.5 | 950 | 2200 | 1850 | 240 | 1160 | 2760 | 2600 | 4 | 2.2 |
EYH3000 | 3000 | 0.5 | 1100 | 2400 | 1910 | 280 | 1220 | 2960 | 2640 | 5 | 4 |
EYH5000 | 5000 | 0.5 | 1800 | 2700 | 2290 | 300 | 1440 | 3530 | 3000 | 7.5 | 5.5 |
EYH10000 | 10000 | 0.5 | 3000 | 3200 | 2700 | 360 | 1800 | 4240 | 4000 | 15 | 11 |
EYH12000 | 12000 | 0.5 | 4000 | 3400 | 2800 | 360 | 1910 | 4860 | 4200 | 15 | 11 |
EYH15000 | 15000 | 0.5 | 5000 | 3500 | 3000 | 360 | 2100 | 5000 | 4400 | 18.5 | 15 |

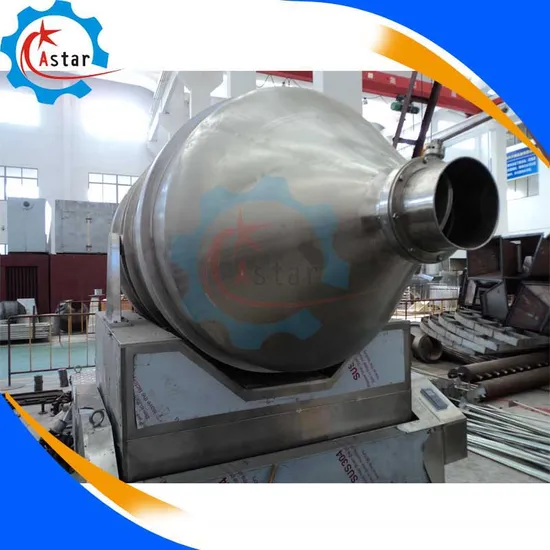

Chemical Powder Granules Mixer Blender Machine For Sale More Photos:
To know more Chemical Powder Granules Mixer Blender Machine For Sale , pls contact with us freely.
>>
