Semi-Automatic CNC Eight-Axis Charging Transformer Winding Machine

Product Description

Product Description

Eight axis, suitable for line diameter 0.02-0.50mm, can be used for larger line diameter
Product Features
1. Imported guide rail and lead screw are adopted to ensure the precision of machine positioning and repeated positioning. Each step of high-speed spindle assembly has passed strict quality control, high speed, low noise and long service life
2, machine type replacement is convenient, the need to call the appropriate program and replace the fixture can be
3, machine type replacement is convenient, the need to call the appropriate program and replace the fixture can be

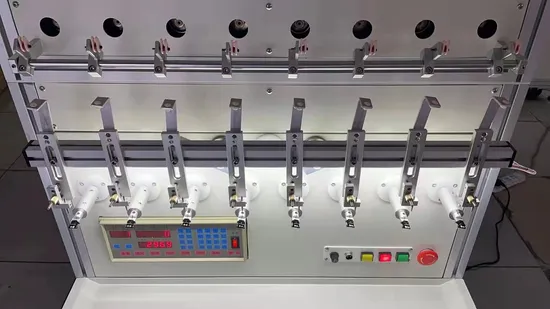

Detailed Photos

Product Parameters

Main components of the eight-spindle winding machine are as follows
1. Cylinder: SDA16*25 Star Pneumatic
2. Solenoid valve: 24V Yadeke brand
3. Screw: 1605 screw Han Yi Precision
4. Motor: 750W AC frequency conversion motor, Jiangnan Microelectronics Brand
5. Bearing: 6201, 6202 Japan NSK
6. Tensioner: Chuang Yi precision brand
7. Switching power supply: 48V Ming Wei power supply
8. Controller: Ming speed automation
9. Aluminum: 6061 national standard
10. Belt: Japan Samsung

Machine Model	WD-TS808H
Machine Name	Semi-Automatic 8-axis winding machine
Number of Spindles	8
Axls spacing distance(mm)	70
Spindle revolutions	12000RPM
Wire Diameter Scope	0.025-0.4mm
Control System	Motion control card with touch screen
Control Motor	Spindle Panasonic servo 1.5KWXYZ 400W respectively

Power	220V50/60Hz
Air source	above 0.5Mpa
Machine size	1050*1250*1550mm
Machine weight	700kgs
Remarks	Optionally add lagging machine and stranding machine, automatic peeling machine

Packaging & Shipping
Transport:
We support air, sea and land transportation.Our packing is foam + carton. Ensure the safe transportation of products.


Our Advantages

Wodu Company takes "quality first, technology first, service first, customer first" as the purpose, always "pragmatic, scientific management, integrity-based, believe in management and control innovation, constantly improve their own skills" concept.
FAQ

Q1. How soon can I receive the quotation?
We will send you the quotation within 24 hours after receiving the inquiry.

Q2. How soon can I get the sample and quality?
It usually takes seven days to produce the sample. Bulk orders usually take 7-15 days. If something urgent comes up, the delivery time may be postponed

---
