Fabric Vertical Flammability Tester

Product Description

Product Description

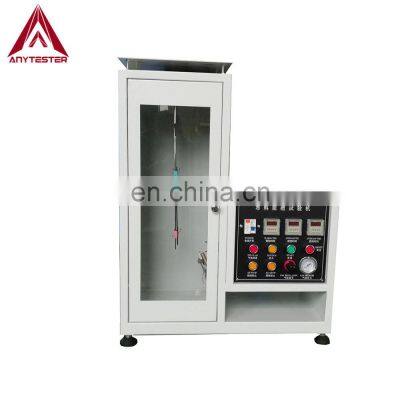

Product DescriptionVertical Flammability TesterHY0815A Vertical Flammability Tester is used for measuring the vertical flame spread for knitted-fabric, woven fabric, coating products, etc.Details and Features★ A3 Steel body with double painting, leave 12.5mm hole for fume outlet★ Micro-computer control of timing and ignition system, auto-complete, accurate, stable and reliable★ Adjustable ignition time according to different test requirement, default is 12s★ Adjustable flame height★ With transparent protective glass door, convenient to observe★ Equipped with air vent on the top of machine★ Fully equipped with accessories, easy to operateStandard ConfigurationASTM D641316 CFR Parts 1615 & 1616GB/T5455Technical specificationModelAT815ATiming range0.1s~99H99MinTiming accuracy0.01sIgnition time12s (default), settableFlame heightAdjustableInner diameter of igniter11mmSample holderU shape, inner frame: 356mm×51mmAir input pressure2kPa~20kPaOverall dimensions720mm×330mm×900mmChamber size329mm×300mm×767mmPower supplyAC220V±10%, 50HzPower40wWeight35kgOur CompanyPayment Payment term T/TEXW30% T/T in advance, paid the balance before shipmentFOBCFR(C&F)30% T/T in advance, paid the balance against copy of B/LCIFL/CL/C amount above 50,000 usd, we can accept L/C at sightWest UnionAmount lower than 5000usdDelivery Time7~10days after receiving payment for one containerContacting UsPacking & DeliveryPackagingPackaging Details1. The equipment is covered with film is protect it from water vapour during the trip.2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated.

---
