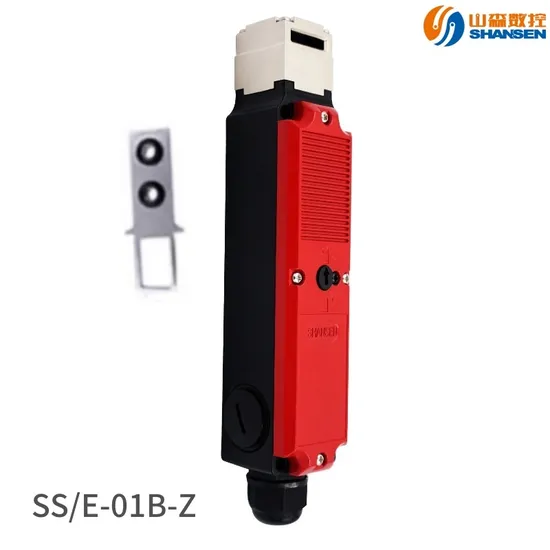

(SS/E-01B-Z) Mechanical Lock Safety Door Switch for Lathe with CE

Product Description

https://cdfcd11d982fc597.en.made-in-china.com/product/VnNUhEBjhgpk/China-Square-Shape-Structure-Electromagnetic-Locking-Safety-Door-Switch-Ss-E-03.html
Product Description
Safety door switches are used to detect the opening and closing status of doors, and are used in equipment, assembly lines, and specific job
A device that meets specific safety requirements for the premises and is a standard accessory in CNC machine tools.

Product Parameters Characteristics
All-metal composition, head can be adjusted in 4 directions
5 types of pins available
With manual unlocking mechanism
Increase the number of contact groups to 4 groups
Outlet method is optional in 3 directions.

Locking Method: Energized Unlocking
Contact Capacity

Rated voltage		24V	230V
Rated current	Inductive load (AC-15)	4A	-
	Inductive loads (DC-13)	-	4A

Solenoid Coil

Rated voltage	DC24V	+10% -15%
Rated current	0.31A
Insulation class	Level B

Performance Specifications

Production standard	t/sdmtgm0007-2020
Operating environment	Better than pollution level 3
Ambient temperature	-5~40ºC
Relative humidity	45~80%
Protection class	IP67 (without induction port)
Mechanical service life	Not less than 1 million times
Electrical service life	Not less than 100,000 cycles (AC-12 250V 4A)
	Not less than 1 million times (24V AC/DC 100mA)
Tensile strength	2500N

Model Description SS/E-01B
Dynamic Action and Circuit Diagram
Detailed Photos
Company Profile
company strength
FAQ 1.Q: Which trade term I can choose?
A: You can choose FOB,FCA
2.Q: How can I get quotation from you?
A: You can make the inquiry online on made-in-china, or send email to us. It is better if you can tell what is your detailed request information. We will reply to you within 24 hours on work days, and within 48 hours on holiday.
3.Q: how can I make the payment?
A: We can make the deal on made-in-china online platform, you can pay by T/T . You can also pay to my company business bank account.
4.Q:What is your delivery time ?
A:The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not.
We want to know:
Please tell us your specific purchasing requirements, so that we can make specific quotations.

---
