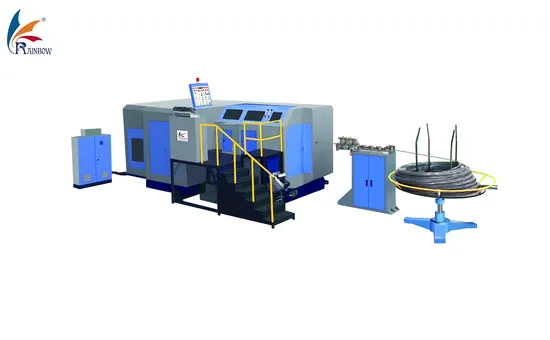

High Performance Full Automatic Cold Forging Machine/Bolt Forming Machine

Product Description

Product Description

Salient Features: 1. The air clutch brake system has been designed to actuate with low current and as "inching", "single stroke" and "continuous running". Except "inching", the machine will always stop at the backward position of the main slider while operating in largest space. 2. Two sorts of transfers system for customer to choose: swing type (general equipped) and universal type (optional), equipped with pneumatic gripper, it can simplify the demand of operation, and is more stable when the machine runs at high speed.
3. Main motor is equipped with speed-adjust transducer, PLC control system, computer automatic man-machine interface system(Optional), these equipment make lots of convenience for customer to adjust the dimension of the non-standard products.
4. Feeding wheel and claw system are both drived by cylinder, the claw can stretch automatically when it goes back in order to reduce abrasion and noise. Feeding material and stop feeding material are controlled by two claws, the feeding material system is equipped with device for avoiding material draw back.
5. Perfect inspection system: short material inspecting and eliminating, inspection of the low location of oil pressure and air pressure, transfer system floating inspection system, overload, and lightload stop system to protect the lathe and dies and prolong the service life of them.
6. When the customer prepare to adjust the side cutting screw, they only need to adjust side cam's station position, then they can achieve side cutting purpose. When the workpieces need not side cutting, customer can reset it to achieve the change from side cutting to former station.
7. High strengthened-material lathe bed, lengthened main and subsidiary slider structure and "pedrailtype" slider which is adopted domestically for the first time realize "zero space" assembling which assures the precision of the main slider movement and lengthens their service life of dies.
8. The main parts of all type machines have adopted strict casting procedure and annealing disposal to assure its steel hardness and precision.
9. Circle cutting die station assures the sheared material shouter than billet diameter which also can achieve accurate right angle cutting.
10. Auto sizing material stopper can adjust the precision of material size in the state of machine running.
11. P.K.O synchronized knock out system makes the choice of molding technics flexible.
12. Transfer finger moving and cutting cams are calculated via professional computer software to make machine stable in state of high speed forging.
Exhibitions in 2019
We can supply one die two blow screw making machine and three station, four station, five station, six station bolt former. If you have any question, pls feel free to contact me.

---
