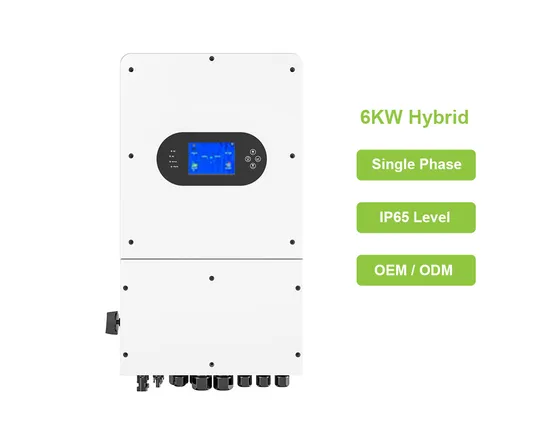

6kw 8kw 10kw 12kw Home Energy Storage System IP65 Single Phase Low Voltage off Grid on Grid Hybrid Solar Inverter

Product Description

Product Description
Product Parameters

Model	PD0080G-SPM-EU
PV String Input Data
Max. DC Input Power (W)	10400
Rated PV Input Voltage (V)	370 (125~500)
Start-up Voltage (V)	125
MPPT Voltage Range (V)	150-430
Full Load MPPT Voltage Range (V)	200-430
Max. DC Input Current(A)	26+26
Max. DC Short Circuit Current(A)	34+34
No.of MPPT Trackers	2
No.of Strings per MPPT Tracker	2+2
AC Output Data
Rated AC Output Power (W)	8000
Max AC Output Power (W)	8800
AC Output Rated Current (A)	36.4
Max AC Output Current (A)	40
Max Continuous AC Passthrough (A)	50
Peak Power (off grid)	2 times of rated power, 10 S
Power Factor	0.8 leading - 0.8 lagging
AC Output Frequency and Voltage	50/60Hz; L/N/PE 220/230Vac
Grid Type	Single Phase
Total Harmonic Distortion (THDi)	<3% (of nominal power)
DC Current Injection	<0.5% (Rated Current)
Battery Input Data
Battery Type	Lead-acid or Lithium-ion
Battery Voltage Range (V)	40~60
Max. Charging Current (A)	190
Max. Discharging Current (A)	190
External Temperature Sensor	Yes
Charging Curve	3 Stages / Equalization
Charging Strategy for Li-Ion Battery	Self-adaption to BMS
Efficiency
Max. Efficiency	97.60%
Euro Efficiency	96.50%
MPPT Efficiency	99.90%
Protection
Anti-islanding Protection	Yes
PV String Input Reverse Polarity Protection	Yes
PV String Input Reverse Polarity Protection	Yes
Residual Current Monitoring Unit	Yes
Output Over Current Protection	Yes
Output Shorted Protection	Yes
Surge Protection	DC Type II/AC Type III
Over Voltage Protection	Yes
Certifications and Standards
Grid Regulation	IEC61727/,EN50549-1
Safety EMC / Standard	IEC/EN 61000-6/2/4, IEC/EN 62109-1, IEC/EN 62109-2
General Data
Operating Temperature Range (ºC)	-40-60ºC, >45ºC Derating
Cooling	Smart Cooling
Noise (dB)	≤50 dB
Communication with BMS	RS485; CAN
Monitoring mode	WIFI,AP
Weight (kg)	29
Size (W x H x D mm)	630x413x258mm
Protection Degree	IP65
Installation Style	Wall-mounted
Warranty	5 Years (10Years Optional)

Features 1. Support AC alternating current coupling to transform existing solarenergy systems.
2. Up to 16 units in parallel during grid-connected and off-grid operationand support the parallel batteries connections.
3. The maximum charge and discharge can reach 135A.
4. Maximum conversion efficiency (DC/AC) up to 98%.
5. WIFl and GPRS can be used for lOS and ANDROID
6. Suitable for multiple application scenarios: home, breeding basemountain area, forest area.

Process
Company Profile
FAQ Q: What are the advantages of your company?
A: We are the professional solar panel manufacturer, and we also provide you with other brand options, such as Longi, JA Solar, Jinko, ASTRONERGY Solar, DMEGC, with better prices, and better models at the same time.Q: May I have a piece of sample to check the quality?
A: Sure, Welcome to place the sample order to check our products' quality.
Q: What are your payment terms?A: L/C, T/T, D/P, Paypal, Western Union, MoneyGram, etc.
Q: How about the delivery time?
A: 15-20 days after receiving your payment.
The specific delivery time depends on the items and the order quantity.Q: Where is the port of loading?
A: Shanghai, Ningbo.Q: Do you also support OEM and customize the solar panels for us?
A: Yes, sure, tell us your detailed requirements.

---
