ASA PVC Twin-Wall Hollow Roofing Sheet Making Machine

Product Description

ASA PVC Plastic Roofing sheet Making Machine Price/ PVC Twin-Wall Hollow Roofing Sheet Making Machine Product Description
Machine name: Plastic PVC Roof Tile Making machine

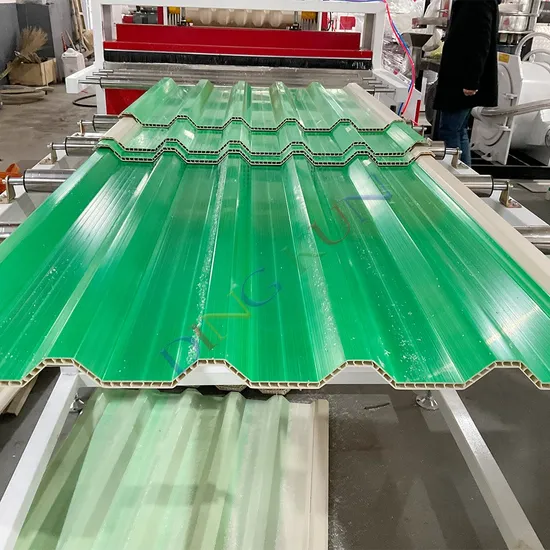

Finshed product : Plastic roofing , PVC composite roofing , Plastic corrugated roofing,
Product application: Plastic Corrugated tile are used for Roofing, can be used for factories, warehouses, sheds, farmers market, hoardings, walls, temporary shops, sheds and other very suitable insulation
Product features:
PVC+ASA glazed/corrugated composite resin tile should be the IDEAL REPLACEMENT of conventional asbestos and metal G.I. sheets which are not resistant to corrosion and weather under the high cost and short service life.
This new PVC composite roof tile production adopted advanced multilayer CO-EXTRUSION technology which well combine the different functions of raw materials(PVC+ASA) so that the tile can be anti-corrosive, fire retardant, eco-friendly, more durable, tenacious, easy to install and move, light weight as well as cost effective in installation (as less steel and less overlap), as per the efficiency and benefits it provides.

Product Parameters
PVC+ASA Co-extrusion Roof Tile Production Line includes extruder, mould, calibration system, haul-off machine, cutting machine and stacker.

Twin Screw Extruder		SJZS80/156 +SJ50/30
Mold width		900 mm
Max linear velocity		5m/min
Max traction force		50 KN
Cutting mode		saw-type
Center height		1000mm
Max output		400kg/h
Drive motor		55kw+18kw
Machine weight		10000kg
Machine Size		21*3*2.2m
specification of the tile(Can be customized according to design)
Width	880/1040mm
wave pitch	160mm
wave distance	220mm
thickness	1~3mm

Machine List
No.	Name	Qty.	Remark
1	Screw loader for SJZ 80/156 extruder	1
2	SJZ 80/156 conical twin-screw extruder	1	For the PVC layer
3	Vacuum loader for SJ50 extruder	1
4	Drying hopper for SJ50 extruder	1
5	SJ50/30 single screw extruder(ASA)	1	For the ASA layer
6	Mould unit	1
7	Distributor	1
8	Forming table and calibration mould	1
9	Haul off unit	1
10	Cutter	1
11	Stacker	1

Detailed Photos
SJS80/156 Twin Screw Extruder
Machine Electrical part:ABB inverter,Siemens Motor,Schneider Contactor,,Electrical wire is CE export standard Motor 55kw SIEMENS ;
Control system : Siemens Screen touch control or RKC or OMRON table control.
2. Mould Mold type: Coat hanger runner, uniform discharge.
Head surface:0.04-0.05mm.
Heating zones: 7zones
Heating power: 3.5kw×7zones
Calibration Table & Haul off Machine
equipped with strong cooling device which ensures the cooling effect.
Haul Off Machine
Cutting Machine
cutter has the reliable and accurate cutting performance.PLC Control
Stacker
Packaging & Shipping
Certifications
Company Profile
After Sales Service

---
