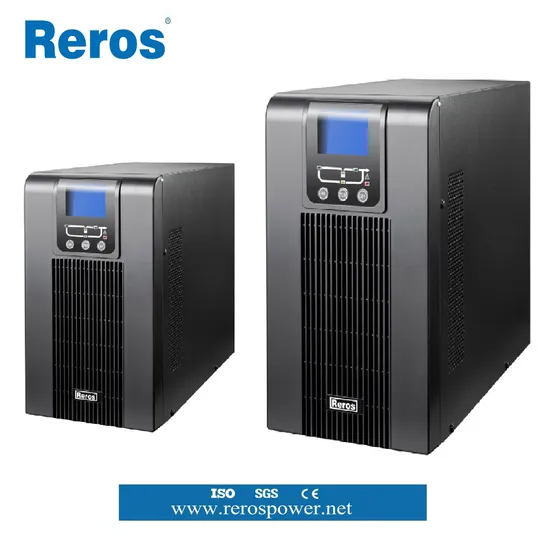

1K/2K/3K/6K/10K/15K/20K/30kVA Online High Frequency Tower Power Supply System UPS for Small Data Center

Product Description

W1-3Kva&G6-30k
Product IntroductionHigh frequency W1-3Kva&G6-30k series is based on double conversion on-line intelligent UPS, it adopts advanced DSP digital control technology, has functions of higher output performance indicators and a number of innovative design features, is the ideal solution for small-capacity power supply scenarios, can fully eliminate all kinds of power grid problem. Support for tower installation, built-in battery. Main feature
1.Full digital control technology
2.Output power factor up to 1.0
3.LCD display panel
4.RS232 communication port
5.Intelligent SNMP+USB+EPO+dry contact (optional)
6.High power density design
7.AC/AC efficiency up to 95%
8.ECO function
Application
1.Data center
2.Network device
3.Commercial facility
4.Precision instrument
5.Home, Office and other AC power supply Specification

Model

W1KS(L)

W2KS(L)

W3KS(L)

G116KS(L)

G11/3110KS(L)

G11/3115K

G11/3120K

G11/3130K

Capacity

1kVA

2kVA

3kVA

6kVA

10kVA

15kVA

20kVA

30kVA

Input features

Voltage(Vac)

120VAC~300VAC

120-300(1/1)/266-475(3 /1)

Frequency(HZ)

45~66

Phase

Single phase

Single phase/3φ4W+PE

Power Factor

Full load ≥0.95

Full load ≥0.98

Battery voltag(Vdc)

24/36

72/72

72/96

192(16-20pcs can be adjustable)

Battery type

2*9Ah 12V/External

6*9Ah 12V/External

6*9Ah 12V/External

16*9Ah 12V/External

External

Output features

Power factor

1.0

0.8/0.9/1.0

Voltage(V)

220/230/240±1%

Frequency(HZ)

50/60±0.05%(battery mode)

Transfer Time(ms)

0

≥92%

≥93%

Waveform

Sine Wave,Linear Load THD<3%;Non-linear Load THD<5%

Overload

105%~129% full load keep 60s;130%~150% load keep 30s;Above 150% load keep 300ms

105%~125% ,transfer to bypass after 10 mins;125%~150%,transfer to bypass after 30secs;Above 150%,transfer to bypass after 0.5 second.

Crest Factor

>3:1

Output socket

EU/IEC/UK( optional)

Terminal block

Others

DC start

Yes

Backup time

Normally 5-8 mins/Long time need to depend on demands

Communication function

RS232(USB/dry contact are optional)

SNMP(optional)

Can be network monitored by SNMP adapter

Display

LED display UPS work status, LCD display UPS work parameters

Noise (dB)

<50(within 1 meter)

<55(within 1 meter)

Parallel function

No

Yes(optional)

Alarm

Battery low-voltage, mains abnormal, overload, UPS fault, over temperature protection

Protection

Input over-voltage protection, battery under-voltage protection, overload protection, short circuit protection, over temperature protection.

Working temperature(ºC)

0~40

Humidity

0~95%,Non condensing

Size(D×W×H) (mm)

355×145×226

402×190×326

500×248×616(S&3/1)/500×240×460(L)

500×248×616

Weight(KG)

7/12

8/19

8/24

19/16

64/21(1/1 )30(3/1)

36

39

42
