Cbb61 AC Fan Condenser Starting and Running Film Capacitor

Product Description

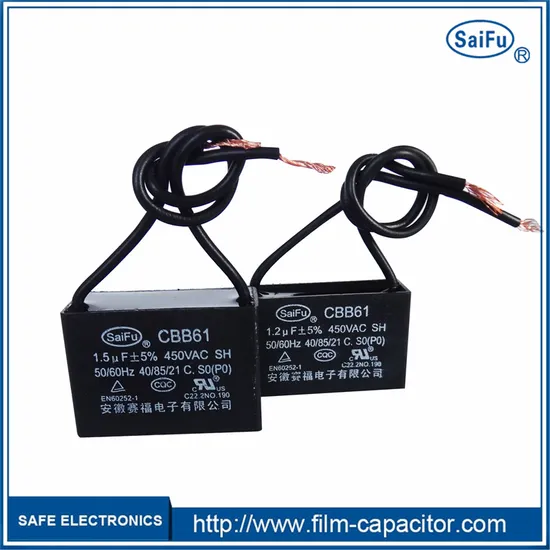

CBB61 AC Fan Condenser Starting And Running Film Capacitor
CBB61 fan capacitors are rectangular in shape and are called metallized polypropylene film capacitors.
It is based on polypropylene film capacitor dielectric, plate is coated on the film on a very thin layer of
conductive material, generally aluminum or galvanized aluminum, and then wound. One of the biggest
characteristics of it is self-healing property,it will not occur capacitor internal short circuit.
1. CBB61 Process Flow Chart
2. Features
(1)Widely applied to the starting and running of AC single-phase motors at 50Hz/60Hz frequency power
(2)Self-healing property
(3)Good stability and reliability
3. Applications
(1)CBB65 capacitor applied to Air Conditioner,Refrigerator,Compressors,AC Motor,General Purpose,Lighting,
etc;Safer with Explosion-proofed design; Round capacitor, can be provided oval capacitor; Single capacitor,
can be provided double capacitor (2)CBB61 capacitor applied to Air Condition Blower,Ventilator,Ceiling Fan,Electric Fan and etc.
(3)CBB60 capacitor applied to Washing Machine, Water Pump, Cleaning Machine, etc.
4. Specifications

Reference standards	GB/T 3667.1( IEC60252-1)
Climatic category	40 / 70 / 21,40 / 85 / 21
Class of operation	Class B (10000h) Class C (3000h)
Class of safety protection	S2(CBB65),S0/S3(CBB61,CBB60)
Voltage range	250VAC,370VAC,440VAC,450VAC
Capacitance range	1~100μF
Capacitance tolerance	± 5% , ± 10%,± 15%
Dissipation factor	20 x10-4 (100Hz,20°C)
Test voltage terminal to terminal UTT	2Un for 2 seconds
Test voltage terminal to case UTC	(2Un+1000)VAC or 2000VAC- 50Hz for 60 seconds
Insulation Resistance	≥3000s (100Hz,20°C,1min)

5. Dimensions(mm)

Type	Specifications	Terminal		Size
CBB65 Capacitor	CBB65-450VAC 2μF ~9μF	2×4 or 2×2 pin		φ40*60
	CBB65-450VAC-10μF	2×4 or 2×2 pin		φ40*60
	CBB65-450VAC-12.5μF	2×4 or 2×2 pin		φ40*70
	CBB65-450VAC-15μF	2×4 or 2×2 pin		φ45*70
	CBB65-450VAC-20μF	2×4 or 2×2 pin		φ50*75
	CBB65-450VAC-25μF	2×4 or 2×2 pin		φ50*85
	CBB65-450VAC-30μF	2×4 or 2×2 pin		φ50*100
	CBB65-450VAC-35μF	2×4 or 2×2 pin		φ50*100
	CBB65-450VAC-40μF	2×4 or 2×2 pin		φ50*100
	CBB65-450VAC-45μF	2×4 or 2×2 pin		φ50*100
	CBB65-450VAC-50μF	2×4 or 2×2 pin		φ50*125
	CBB65-450VAC-55μF	2×4 or 2×2 pin		φ50*125
	CBB65-450VAC-60μF	2×4 or 2×2 pin		φ50*125
	CBB65-450VAC-65μF	2×4 or 2×2 pin		φ50*125
	CBB65-450VAC-70μF	2×4 or 2×2 pin		φ50*125
	CBB65-450VAC-80μF	2×4 or 2×2 pin		φ60*125
	CBB65-450VAC-90μF	2×4 or 2×2 pin		φ60*125
	CBB65-450VAC-100μF	2×4 or 2×2 pin		φ63.5*125
Type	Specifications	450VAC Size		250VAC Size
CBB61 Capacitor	CBB61 450VAC/250VAC-1μF	37×13×23		37×13×23
	CBB61 450VAC/250VAC-1.2μF	37×13×23		37×13×23
	CBB61 450VAC/250VAC-1.5μF	37×14×25		37×13×23
	CBB61 450VAC/250VAC-2μF	37×16×28		37×13×23
	CBB61 450VAC/250VAC-2.5μF	37×18×28		37×14×25
	CBB61 450VAC/250VAC-3μF	47×18×29		37×14×25
	CBB61 450VAC/250VAC-3.5μF	47×18×34		37×16×28
	CBB61 450VAC/250VAC-4μF	47×18×34		37×16×28
	CBB61 450VAC/250VAC-4.5μF	47×22×34		37×16×28
	CBB61 450VAC/250VAC-5μF	47×22×34		37×18×28
	CBB61 450VAC/250VAC-5.5μF	47×22×34		37×18×28
	CBB61 450VAC/250VAC-6μF	47×22×34		47×18×29
	CBB61 450VAC/250VAC-6.5μF	48×26×38		47×18×29
	CBB61 450VAC/250VAC-7μF	48×26×38		47×18×29
	CBB61 450VAC/250VAC-8μF	48×26×38		47×18×34
	CBB61 450VAC/250VAC-10μF	58×26×44		47×22×34
	CBB61 450VAC/250VAC-12μF	58×26×44		47×22×34
	CBB61 450VAC/250VAC-15μF	58×26×44		47×22×34
	CBB61 450VAC/250VAC-16μF	58×26×44		48×26×38
	CBB61 450VAC/250VAC-20μF	58×35×49		48×26×38
	CBB61 450VAC/250VAC-25μF	58×35×49		48×26×38
	CBB61 450VAC/250VAC-30μF	negotiable		58×26×44
	CBB61 450VAC/250VAC-35μF	negotiable		58×26×44
Type	Specifications	Routine		With screws or pins
		450VAC	250VAC	450VAC	250VAC
CBB60 Capacitor	CBB60 450VAC/250VAC-1μF	φ26*52	φ26*52	φ30*52	φ30*52
	CBB60 450VAC/250VAC-2μF	φ26*52	φ26*52	φ30*52	φ30*52
	CBB60 450VAC/250VAC-2.5μF	φ26*52	φ26*52	φ30*52	φ30*52
	CBB60 450VAC/250VAC-3μF	φ26*52	φ26*52	φ30*52	φ30*52
	CBB60 450VAC/250VAC-3.5μF	φ26*52	φ26*52	φ30*59	φ30*52
	CBB60 450VAC/250VAC-4μF	φ28.5*55	φ26*52	φ35*62	φ30*52
	CBB60 450VAC/250VAC-4.5μF	φ28.5*55	φ26*52	φ35*62	φ30*52
	CBB60 450VAC/250VAC-5μF	φ28.5*55	φ26*52	φ35*62	φ30*52
	CBB60 450VAC/250VAC-5.5μF	φ34*62	φ26*52	φ35*62	φ30*52
	CBB60 450VAC/250VAC-6μF	φ34*62	φ26*52	φ35*62	φ30*52
	CBB60 450VAC/250VAC-6.5μF	φ34*62	φ26*52	φ35*62	φ30*52
	CBB60 450VAC/250VAC-7μF	φ34*62	φ26*52	φ35*62	φ30*52
	CBB60 450VAC/250VAC-8μF	φ34*62	φ26*52	φ35*62	φ30*52
	CBB60 450VAC/250VAC-9μF	φ34*62	φ26*52	φ35*62	φ30*52
	CBB60 450VAC/250VAC-10μF	φ34*62	φ26*52	φ35*72	φ30*52
	CBB60 450VAC/250VAC-12μF	φ37*73	φ26*52	φ35*72	φ30*61
	CBB60 450VAC/250VAC-14μF	φ37*73	φ34*62	φ40*72	φ30*61
	CBB60 450VAC/250VAC-15μF	φ37*73	φ34*62	φ40*72	φ30*61
	CBB60 450VAC/250VAC-16μF	φ37*73	φ34*62	φ40*72	φ30*61
	CBB60 450VAC/250VAC-18μF	φ37*73	φ34*62	φ40*72	φ35*67
	CBB60 450VAC/250VAC-20μF	φ40*72	φ34*62	φ40*72	φ35*67
	CBB60 450VAC/250VAC-25μF	φ42*80	φ42*62	φ40*72	φ35*67
	CBB60 450VAC/250VAC-30μF	φ42*90	φ40*72	φ45*95	φ40*72
	CBB60 450VAC/250VAC-35μF	φ45*90	φ40*72	φ45*95	φ40*72
	CBB60 450VAC/250VAC-40μF	φ50*100	φ42*90	φ50*110	φ40*97
	CBB60 450VAC/250VAC-45μF	φ50*100	φ42*90	φ50*110	φ40*97
	CBB60 450VAC/250VAC-50μF	φ50*100	φ42*90	φ50*120	φ40*97
	CBB60 450VAC/250VAC-60μF	φ50*115	φ42*90	φ50*120	φ40*97

Note: Other specifications and size,terminal outside table are negotiable.
6. Production Equipments
7. Product Certifications
8. R & D Patents
9. Honors Our Company Has Received
10. FAQ
Q1. Are you a manufacturer?
Yes, we are professional capacitor manufacturer and have specialized in this industry for decades.
Q2. What is the specification of CBB65 capacitor?
Capacity: 1μF-100μF Voltage: 250VAC,370VAC,440VAC,450VAC,etc
Q3. How do you ensure your quality?
Our products have obtained CQC, TUV, UL, CE and other relevant certifications, in compliance with
RoHS and REACH directive requirements.
Q4. Can you provide samples?
Yes, we can provide samples for testing.
Q5. Can your product be customized?
Yes, we can customize products according to customer's requirement.
Quality first, Customer foremost, Build tomorrow's business with today's service!

---
