Traditional Cw61160 Machine Tool Lathe Handle Lathe Heavy Duty Horizontal Lathe Manufacturer High Quality Standard Manual Lathe Cw61100

Product Description

Overview

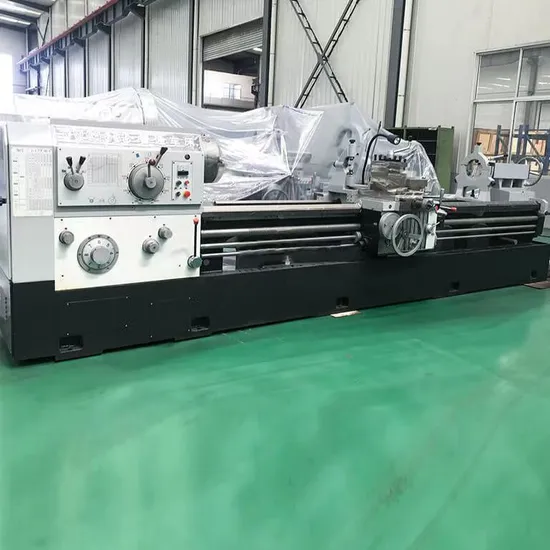

CW SERIES ENGINE LATHE-CW61160 Manual Lathe Machine Integral machine bed adopts high strength iron to realize high rigidity and precision.Ultrasonic frequency quenched guide-ways are hard enough for good wear-resistance. Headstock gears hardened and precision ground to achieve high precision and low noise. It can process materials such as cast iron, steel and non-ferrous metals, etc.
It can turn end faces, internal and external cylindrical surfaces, conical surfaces and other rotating surfaces, and process all kinds of metric, imperial, modulus and diameter section threads, and it can also be used for drilling, reaming and pulling oil grooves and so on. Standard configuration
3-jaw chuck(Ф315mm) 4-station manual toolpost
Work lamp
Coolant system
Standard safety cover
Tail stock
Pad iron
Tool box
Operation manual
Optional configuration
Follow rest Center rest
Digital readout
Grinding attachment
Protective cover (lead-screw, chuck, tool post)

Specifications

SPECIFICATION OF LATHE MACHINE
ITEMS		UNIT	CW61160B Lathe
Capacity	Swing over bed	mm	Φ1600
	Swing over cross slide	mm	Φ1200
	Distance between centers	mm	1500/2000/3000/4000mm
	Width of bed way	mm	755
	Max. load capacity	T	6
Spindle	Spindle bore	mm	Φ130
	Spindle nose taper	-	Metric 140 MT#6
	Spindle nose type	-	A2-15
	Spindle speed steps	-	FWD.21 steps
	Spindle speed range	rpm	3.15-315
	Chuck size	mm	Φ1000
	Chuck type	-	4-jaw manual
Turret	Turret type	-	Manual turret 4 position
	Tool shank size	mm	45x45
Feed	X axis travel	mm	620
	Z axis travel	mm	1350/1850/2850/3850
	X axis feed grade/range	mm/r	56/0.05-6
	Z axis feed grade/range	mm/r	56/0.1-12
	X axis rapid traverse speed	mm/min	1870
	Z axis rapid traverse speed	mm/min	3740
	Metric thread grade/range	mm	44/1-120
	Inch thread grade/range	T.P.I.	31/28-3/8
Tailstock	Tailstock quill diameter	mm	Φ160
	Tailstock quill taper	-	MT#6
	Tailstock quill travel	mm	300
Motors	Main spindle motor	kW	22
	Rapid traverse motor	kW	1.5
	Coolant pump motor	kW	0.125
Dimensions	Width x Height	mm	2250×2150
	Length	mm	4600/5100/6100/7100
Weight	Net weight	T	11.2/11.6/12.3/13

Packaging & Shipping
Company Profile
Shandong Vedon Intelligent Equipment Co., Ltd., We Specialize In The Design And Manufacturing Of High-Precision Cnc Machines For Metalwork Processing. Including 5 Axis Machining Center, Gantry Type Machining Center, Horitonal Type Machining Center, Vertical Machining Center, Cnc Lathe Etc.. With A Strong Focus On Innovation, Quality, And Reliability, Our Advanced Cnc Equipment Enables Precision And Efficiency In Every Application. Whether For Small-Scale Operations Or Large Industrial Projects, We Deliver State-Of-The-Art Solutions Tailored To Meet The Diverse Needs Of The Metalworking Industry. Powered By Cutting-Edge Technology And A Commitment To Excellence, We Are Dedicated To Enhancing Productivity And Driving Success For Our Global Clients.
Certifications
FAQ
Q1. Could I put my LOGO on it or paint my own color?
A: Yes, As long as the order quantity reach to the MOQ.
Q2. What's your trade terms?
A: FOB, CIF, DAP or other terms are acceptable.
Q3. Could I order trail small order?
A: Yes,we have no MOQ for standard version products. The price is different from different order quantity.
Q4. What points need to be confirmed before placing the order?
A: Voltage, frequency, plug type trade term and have shipping agent or not.
Q5. What is your terms of payment ?
A: Payment≤1000USD, 100% in advance. Payment≥1000USD, 30% T/T in advance, 70% before shippment. If you have another question, pls feel free to contact us as below.

---
