Basic Info.
Application
Double Beam Crane, Gantry Crane, Bridge Crane, Tower Crane, Single Grinder Crane, Lifting Platform
Maximum Lifting Height
20m
Certification
CE, ISO9001:2000
Capacity Range
0.5ton-9ton
Production Capacity
2000PCS/Month
Packaging & Delivery
Package Size
21.00cm * 17.00cm * 15.00cm
Package Gross Weight
25.000kg
Product Description

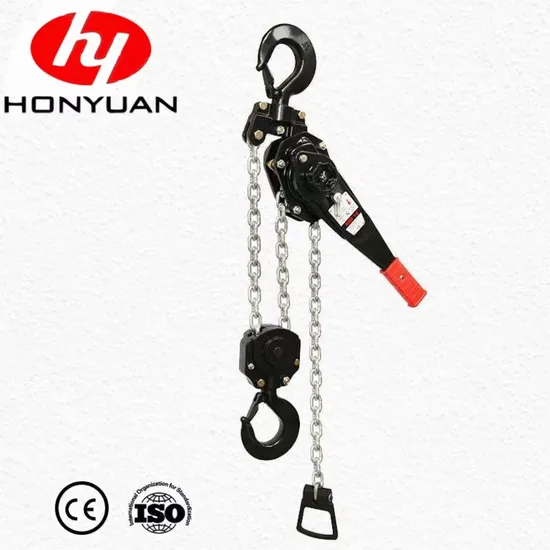

Ce Approved Lifting Equipment 2t Manual Chain Block / Hoist with Hook Product Description
Chain Block / Chain Hoist (D type)* Compact design, low headroom
* High precision gears
* High endurance roller on load sprocket
* Double pawl brake system
* Engineering-optimized hand chain wheel, preventing hand chain stuck in Fast Operation
* High precision load chain guide
* Quenched and tempered high tensile G80 load chain and hooks
* Smooth surface with powder coated preventing rust
* Individual serial No. for each set, wheel cover with DESO logo and WLL embossed.
Detailed Photos
Product Parameters
| HSHZ |
| Model | | HSHZ |
| Capacity | T | 0.75 | 1 | 1.5 | 2 | 3 | 6 | 9 |
| Standard lift | M | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
| Running test | T | 1.125 | 1.5 | 2.25 | 3 | 4.5 | 7.5 | 11.25 |
| Effort required to lift max.load | N | 140 | 140 | 240 | 240 | 320 | 340 | 360 |
| No.of FALLS of load chain | | 1 | 1 | 1 | 1 | 1 | 2 | 3 |
| Load chain dia.(mm) | mm | 6 | 6 | 8 | 8 | 10 | 10 | 10 |
| Dimensions | A | mm | 148 | 148 | 176 | 176 | 195 | 195 | 195 |
| B | mm | 88 | 88 | 102 | 102 | 9 | 109 | 109 |
| C | mm | 135 | 135 | 155 | 155 | 211 | 254 | 319 |
| D | mm | 32 | 32 | 36 | 36 | 46 | 46 | 57 |
| L | mm | 290 | 290 | 415 | 415 | 415 | 415 | 415 |
| H | mm | 320 | 320 | 380 | 380 | 480 | 600 | 700 |
| Net weight(kg) | kg | 7 | 7.5 | 11 | 11.5 | 19 | 32 | 47 |
| Packing(LxWxH) | mm | 370x140x170 | 370x140x170 | 520x140x180 | 520x140x180 | 550x160x210 | 550x160x210 | 620x485x260 |
Certifications
Packaging & Shipping
Company Profile
Exhibition
Payment Term
FAQ1.How about after sales service?
We supply free spare parts to replace your hoists. Besides, we can send your the video to guide your engineers.
2.How to ensure the quality?
Before packing hoist, our workers will send hoists to inspection center well checked.And we take detailed pictures for each hoist before packing.You can offer our serial No.And then know the detailed products.
3.If it is spare parts?
We are manufacturing 60% spare parts in our factory to control high quality, and the other 40% spare parts supplier are from our long term supplier.Before stocking in warehouse, we have strict inspection for each parts.
4.If it is warranty?
We can provide 1 years warranty for electric parts, 2 years for mechanical parts.
>>
