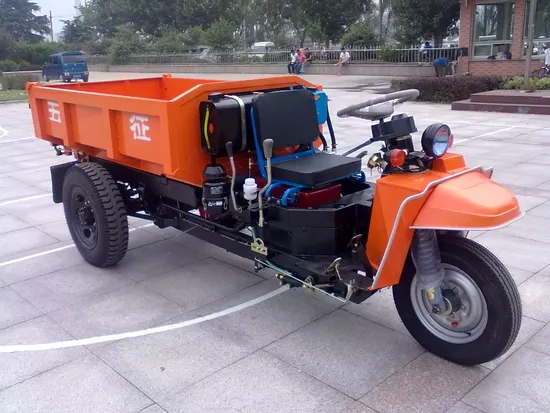

WUZHENG WAW 3 Wheel Dump Vehicle / Tricycle for Mining and Construction areas

Product Description

Industrial and mining series tricycle mainly includes semi-closed and simple vehicle body series. This series of tricycle is suitable for mining and construction sites. Equipped with optimized eight gear rear axle, and makes full use of high and low speed conversion, the vehicle realizes efficient transport and fuel economy.
1. Double MD beam frame structure, strong bearing capacity, thick and impact-resistant material of caogo box, durable vehicle.
2. Dump function, fast lifting within 20 seconds, efficient loading and unloading.
3. Vacuum headlight, strong adhesion of herringbone tyre, smooth driving in mine tunnels and on rough roads.
4. Hydraulic, stable and fast brake, simple windshield design, good driving vision field, improved driving comfort.

Brand			WUZHENG
Model			WK3B2622103
Cabin			XIAOXIANFENG -wind shield
Main dimensions	Overall dimensions (LxWxH)mm		3875×1430×1400
	Dimensions of the cargo body (LxWxH)mm		2200×1400×500
	Wheel base (mm)		2590
	Wheel track (front/rear) (mm)		1240
	Min. ground clearance(mm)		220
Weight	Curb weight (kg)		1240
	Rated payload(kg)		2000
	Persons in cab (persons)		1
	Gross vehicle weight(kg)		3370
Overall performance	Max. speed(km/h)		50
	Max. slope of climb(%)		15
	Min. turning radius(m)		3.7
Engine	Engine Type		CFZS1115
	Displacement(L)		1.195
	Rated horsepower(kg.m/rpm)		22
Steering gear Type			Center worm gear steering
Service brake and boostingType			oil brake
Wheels and tyre size		Front wheel	5.00-14
		Rear wheel	7.00-16
Electric device	Rated voltage		12V
	Battery		6-QW-120MF

Wuzheng Group is one of the key players of machinery engineering in China, originated in 1961. It set up agricultural vehicle business in 1984 and in 2000 was restructured as private ownership.
Nowadays, a diversified industrial pattern of agricultural vehicles, automobiles, agricultural equipment, sanitation equipment and modern agriculture, boosts a coordinated development. 12,000 employees and total assets of 14 billion yuan ground it in reputation and honorable tittles of national, provincial, municipal and industrial levels.
Diversified Industrial Pattern
Wuzheng is committed to innovation-driven industry and product upgrades.
1 Wuzheng Tricycles -Wealth Creator
Since 2010, Multiple functions such as transportation, faming, mining, trading and etc. forge a fame of No.1 sales in agricultural vehicle industry and No.1 brand in the nationwide.
In addition, 3MX, developed by international R&D team, dominates the industry with subversive styling, invention patents, 30 utility model patents, 12 appearance patents, 86 product innovations than in previous 40 years.
2 Feidi Motors- Light Truck Navigator
In 2005, Wuzheng set foot in automobile industry, having cultivated Feidi W, Feidi Q, Feidi WAW, Feidi DITO series
In 2016-2017, DITO family(logistic model, race model, double-row model, medium truck, RV, new-energy model) was launched in succession to cater for diversified market demands.
3 Agricultural Equipment- Booster for Agricultural Modernization
In 2009, Wuzheng renovated it position in senior market after M&A, providing products with high added values and strong competitiveness. RENOMAN of 180~260hp, silage, corn, wheat, and peanut harvesters, tobacco machinery and etc, enrich the product lineup.
4 Sanitation Equipment- Industry Pioneer
On the occasion of sanitation integration and rural reconstruction, Wuzheng has been devoted to providing solution package from collection, disposal to transportation such as hooking-arm model, dumping model, sprinkler, sweeper, waste transfer station and etc.
5 Modern Farming- Participant of international agricultural & livestock
Advanced R & D Analysis and Tests
As a"Corporate technical center", "Industrial design center" "CNAS center"identified by the nation and academician and postdoctoral workstation, Wuzheng undertakes and is engaged in 40+ nationwide technological supporting projects, 630 invention patents and utility model patents and formulation of 60 national and industrial standards and etc.
Automation and Intelligent Manufacturing
Modern Management
Wuzheng lays importance onto comprehensive information management such as SAP system, 6σ & lean management methodology, IATF16949 system and so on, in achieving so, Wuzheng recruits HP, Deloitte, Roland Berger consulting of theory, methodologies and tools.
Global Distribution Networks
Up so now, Wuzheng has established 1500+ sales and service channels and 8million+ loyal customers in the worldwide. By 2019, Wuzheng enables a brand value of 5.663 billion yuan. Wuzheng has paved distribution network in 60+ countries, along with the "Belt and Road", Wuzheng will speed up the pace of "Go Globa

---
