Xm503 Max. Milling Depth 180mm Max. Milling Width 500mm Cold Milling Machine

Product Description

Product Description
XM503 road milling machine is an asphalt road maintenance and construction machine mainly used for the maintenance operations of municipal roads and as the auxiliary construction implement for large milling machines.
It can realize the small-area digging and renovation of asphalt con- crete pavements, including highways, downtown roads,
airports, cargo yards, and parking lots, and can be used for the removal of road bulges, asphalt ripples, overlapping curves, and tracks and for the scuffing of cement roads and the milling of pavement jumps. It can realize the milling along edges and manhole covers. It can realize the road crushing function if the optional hydraulic pickaxe is installed and realize the milling of roadside rumble strips if the optional rumble wheel is installed.
Featuring high working efficiency, simple construction processes, easy control of milling depth, easy and flexible operations, and good mobility, this machine is an ideal machine for repair, renovation, and maintenance of asphalt roads.
Advantages and highlights:
1.Offer Test Report of Professional Institute.
2.Details Of Maintenance And Repair Items Included.
3.Price Concessions.
4.Official Factory Sourcing.
5.Reconditioning Directly From FACTORY.
6.Vehicle Condition of Perfection.
7.Official Endorsement.
8.SGS Provides The Third-Party Inspection Certificate.
Product Parameters

Item	Unit	XM503
Milling width	mm	500
Maximum milling depth	mm	180
Tool nose distance	mm	15
Number of tools		54
Rotor diameter with tool		660
engine model		SC4H-C125
Rated speed	rpm	2200
Rated power	Kw	92
Fuel tank	L	140
Water tank	L	300
Working speed	m/min	0-40
Walking speed	Km/h	0-6
Theoretical climbing ability	%	50
Discharge maximum height	mm	1200
Theoretical discharge capacity	m3/h	42
Total weight	Kg	≤7800/7300
Minimum milling radius	mm	350
Ground clearance	mm	180

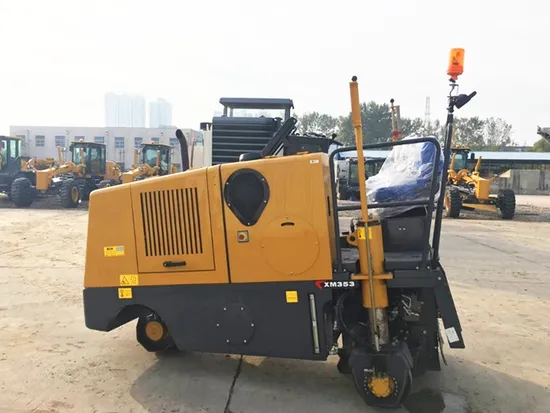

Detailed Photos
Company Profile
Company Production
SUPEREGN Industrial (Shanghai) Co., Ltd. is a leading Chinese construction machinery exporter, affiliated with SUPEREGN INDUSTRY LIMITED, located in the downtown of Shanghai City. Since our company was founded, we persistently introduce excellent Chinese construction machinery to international markets.
Our strengths are as follows:
(I) 16 years professional experience in international trading and rich knowledge in construction machinery & heavy equipment industry, which enable us to turn customer inquiries into final products and export them to numerous countries and regions without barriers;
(II) Proactive and high educated sales team with international vision, speaking fluent multiple languages, such as English, Spanish, Portuguese, Russian, Arabic and French etc.;
(III) Strong long term dealership from various top manufacturers, assuring that all our products are original brand new ones with competitive price;
(IV) Excellent logistics services (by sea, air, railway or road), ensuring timely delivery of consignments all over the world;
(V) Comprehensive after-sales service, including one-year warranty, spare parts supply, installment and maintenance, training and technical advice;
(VI) Expertly managed ERP system and coordinated quality control system to satisfy various project requirements.
SUPEREGN has passed the international quality management system of ISO9000, CE, SGS, UL and other products certification. Our export revenue increases constantly every year, and our products have already entered 168 countries across the continents of Africa, Middle East, South America, Oceania, Middle Asia, Southeast Asia, and East Europe. We sincerely hope to cooperate, develop together and build a good future with you. SUPEREGN, your genuine and professional

---
