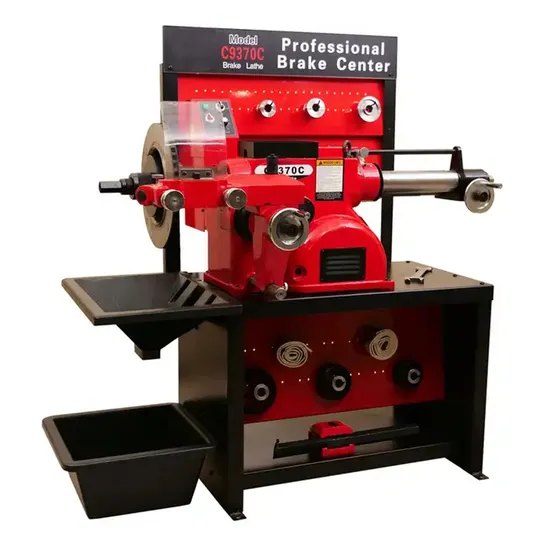

Aodotop Ad-9370c Vehicle Brake Disc Drum Lathe for Car Repair Cutting Machine Lathe

Product Description

Product Description

AODOTOP vehicle Brake Disc Drum Lathe for Car Repair Cutting Machine Repair Cutting Lathe

Spindle Travel	9.875″ (251mm)	Spindle Speed	70,88,118 RPM
Spindle Feed Speed	0.002″(0.05mm)-0.02″(0.5mm) Rev	Cross Feed Speed	0.002″(0.05mm)-0.01″(0.25mm) Rev
Handwheel Graduations	0.002″(0.05mm)	Rotor Diameter	7 ″ - 18 ″ (180-457mm)
Rotor Thickness	2.85″ (73mm)	Drum Diameter	6 ″ - 17 .7 ″ (152-450mm)
Drum Depth	9.875″ (251mm)	Motor	110V/220V/380V, 50/60Hz
Gross Weight	325KG	Dimension	1130*1030*1150mm

Product Features
1. The spindle speed is controlled by the frequency converter, and it changes steplessly within a certain range. The spindle speed can be adjusted at any time without stopping, and it can be easily realized with just one knob. 2. This machine is mainly used for the repair of brake drums and brake shoes of large trucks
3. Using a wide base, the whole machine is more rigid
4. With tool holder limit mechanism to ensure safety
5. Equipped with standard chuck for easy clamping of hubless brake drum, and can make cutting depth up to 320mm
6. The accessories are complete, which can meet the needs of various models
7. There are a variety of special accessories for users to choose
8. Accessories for special models can be customized
9. It is an ideal maintenance equipment for bus companies and large and medium-sized car repair shops Accessories
