Jinggong Wheel Type Cane Loader Price

Product Description

QUANZHOU JINGLI ENGINEERING MACHINERY CO. LTD
PRODUCT DESCRIPTION
Rotating log grapple for mini excavator sugar cane grabber loader mini excavator grapple attachment used on grapple digger

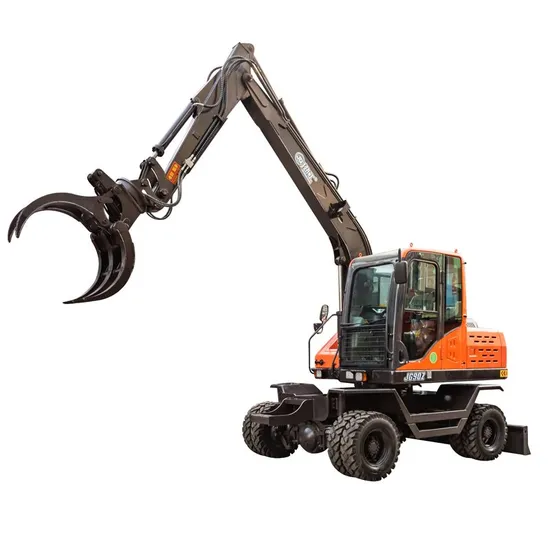

JG90Z is one of the most popular grapple wheel excavators of our company. As early as 2009, we had
started our research and design of it. After years of careful innovation and trials, this excavator now
shows excellent working efficiency and stable performance, contributing to a wide application in China
and Southeast Asia.

The operator can control the rotation speed, and can rotate freely 360 degrees clockwise and counterclockwise.
The grab has a 360° rotation angle, realizing a significant decrease in loading and unloading time and cost of woods,
sugarcanes or other similar materials. In addition to this, it also provides a high degree of security and safety and brings abundant social and economic benefits
to clients.
The interior of the cab is equipped with joysticks, electrical switches, monitoring panels, air conditioners and radios, etc.
The driver's seat can be adjusted according to the driver's requirements. The use of strong environmentally friendly glass
has the characteristics of high strength, UV protection and good sealing performance. The driver's cab with super wide field
of view ensures good visual effects.
SPECIFICATIONS

SPECIFICATIONS
RANGE OF OPERATION			Boom Length				3475mm
			Arm Length				1850mm
			Max Radius Of Capture				6800mm
			Grab The Biggest Opening Width				1200~1500mm
			Grab The Minimum Opening Width				100~300mm
			Maximum Radius Weight Capacity				0.5~0.6t
			Grapple Rotation Angle				360°
			Max Dumping Height				4700mm
			Back-End Radius Of Gyration				1980mm
DIMENSION			(Length*Width*Height) Travel Position				6000*2100*2850mm
			Wheel Base				2400mm
			Track(Front/Rear)				1660mm/1580mm
			Ground Clearance Of Counterweight				1060mm
			Min Ground Clearance				265mm
TECHNICAL PARAMETERS			Angle Of Rotation				360°
			Machine Weight				6800kg
			Engine Model				YN38GB2/4102
			Rated Power				58.8kw
			Rated Speed				2200r/min
			Hydraulic System Working Pressure				21Mpa
			Hydraulic system flow				110L/min
			Metering gear pump				2*25ml/r
			Grapple Swing Speed				12r/min
			Walking Speed				25km/h
			Grade Climbing Ability				58%/30°
			Tyre model				825.16
			Revolution overdrive pressure				16Mpa
			Full Circle Swinging Time				5.5s
			Fqt Fuel Quantity				≥4L/h
			Capacity Of The Fuel Tank				110L
			Hydraulic Tank Capacity				110L

Optional Working Device We provide more optional parts to complete more kinds of work. We provide a variety of work tools such as grabs, forks,
pulverizers, etc. to meet your various application needs. In addition, a variety of fixtures are provided to optimize the
performance of the machine. The auxiliary hydraulic lines are arranged on the base of the boom, making the auxiliary
hydraulic circuit easier to install, thereby reducing the time, parts and costs required for installing work tools.

WORKSHOP DISPALY
Our company abides by the business philosophy of "quality first, customer first" to ensure product quality. We have
rigorous production procedures, and each production process is carried out under strict quality inspection.Only after
passing the inspection can they move on to the next procedure. At the same time, we insist on creating a neat, clean
and safe working environment.
PACKING&SHIPPING
FAQ
WHAT ARE OUR ADVANTAGES COMPARED WITH TRADING COMPANIES?
1. Competitive Price -- We a Chinese leading manufacturer of Wheel Excavators, Crawler Excavators, Sugarcane
Harvester, Sugarcane Grabber Wheel Loader, and Wood Clamping Wheel Loader with good quality, professional
service and lower price.
2. Quick Response -- Our team is consisted of a group of diligent and enterprising people working 24/7 to respond
client inquiries and question all the time. Most problems can be solved within 12 hours.
3. Fast Delivery -- Normally it will take more than 30 days to produce the ordered machines, while we have a variety
of resources, locally and nation widely, to receive machines in timely manner. In 70% circumstance, we can have
an immediate delivery of regular machines for our clients
4. Sole Agent wanted-You may apply our sole sales agent of our factory in your country, if there is no agent yet in
your local area, to open your market working together.
