Vertical Drilling Tapping Center Machine Tool

Product Description

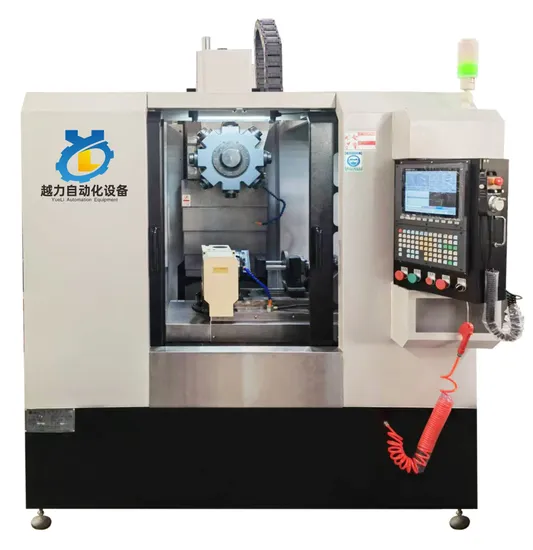

High Precision Turret Drilling Tapping Machine

I.Equipment description and pictures1.The spindle motor and the spindle are directly driven to reduce the error of high-speed tapping, and the characteristics of high output force can be greatly utilized in machining and heavy-duty cutting.
2. Mechanical tool change greatly increases the speed of tool change. Taiwan Hust CNC system realizes simultaneous tool change and workpiece positioning.
3.The machine tool has a large inclined chip removal angle, and the automatic chip volume effectively improves the chip removal effect. At the same time, the machine tool quickly flushes the chips and speeds up the return speed of the cutting fluid.
4.4.By loading a high-speed PLC engine, the response speed is improved, the cycle is shortened, the parameters of the processing details are optimized, and the smoothness of the feed is improved. The improved edge/surface effect does not need to be arranged for subsequent processing.
II.Technical Parameter

No.	Name	Specification(mm)	Remark
1	X-axis maximum stroke (screw) mm	700
2	Y-axis maximum travel (screw) mm	500
3	Z axis maximum travel mm	340
4	The rapid moving speed of X/Y/Z axis m/min	30
5	X/Y/Z axis repeat positioning accuracy	0.008mm
6	Rotary Turret	8 spindles
7	Servo spindle motor power	5.5KW
8	Spindle revolutions	0-6000rpm
9	Spindle interface	ER40
10	Drilling capacity (copper) through hole	Ф60mm
11	Max tapping (copper parts)	50X3mm
12	Spindle turret tool change time	0.8s/180°
13	Tool change motor	750W
15	Turret max diameter tool	120mm
16	Workbench size mm	600×420
17	T-slot size (number - slot width × spacing)	3-18×100
18	Dimensions: L × W × H	2100×2100X1900
19	KG Net weight KG	3500KG

III.Production workshop
IV.Certificate
Quanzhou Yueli Automation Equipment Co.,Ltd was founded in 2013,which covers an area of 3000 square meters. The company is located at the China Plumb Town--Nanan, Fujian. It is a production enterprise lead by drilling tapping compound machine, drilling tapping centers and drilling tapping milling process center. The company is committed to serving various of industries such as sanitary ware, fire protection valves, hardware, electrical hardware, aerospace, machine manufacturing and so on.
If you have any interest, pls feel free to contact at any tim

---
