New Promotion Zb3040X13 Advanced High-Precision Radial Drill Machine for Metalworking

Product Description

Product Description

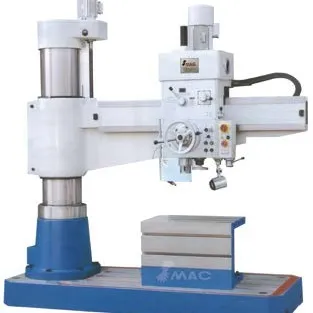

SMAC Radial Drill Presses -
perfect in every detail, powerful, rigid and easy to handle
•base, column, boom and gear head are made of premium
high-quality cast
•major design features include a large column and a highly torsion-resistant boom
•boom height adjustment via a powerful motorized drive and vertical spindle
•the boom lifting gears run in an oil-bath for maximum reliability and minimum wear
•advanced column swivel design with optimized clamping features maximum rigidity and minimum clamping offset
•swivel axis and travel axis feature extremely smooth operation to make the operator's everyday production work easier
•the gears feature hardened and precision-ground chrome- nickel steel gears for smooth and low-noise operation
•all gear pats are lubricated reliably via oil pump
•the main spindle runs on precision bearings and features an automatic spindle brake

Specifications		ZB3040X13
drilling capacity in steel	mm	40
tapping capacity(steel / casting)		M32 / M 40
drilling depth	mm	260
Working area
dimensions,machine table	mm	2050 x 920 x 180
dimensions,cube table	mm	620 x 450 x 450
spinde-to-clumn surface distance	mm	300 - 1300
spinde nose-to-table distance	mm	300 - 1200
drill head travel (horizontal)	mm	1000
arm stroke (vertical)	mm	640
column diameter	mm	280
Headstock
speed range	rpm	54 - 2150
spindle mount		MT 4
Feed
feeds	mm/rev	0.1 - 0.63
Drive Capacities
main motor rating	kM	2.2
lift motor	kM	1.1
Dimensions / Weight
overall dimensions (LxWxH)	mm	2070 x 850 x 2430
weight	kg	2300
