6- 60HP Electronic Fuel Injection outboard motor compatible for Yamaha outboards (China best & largest outboards maket since 2005)

Product Description

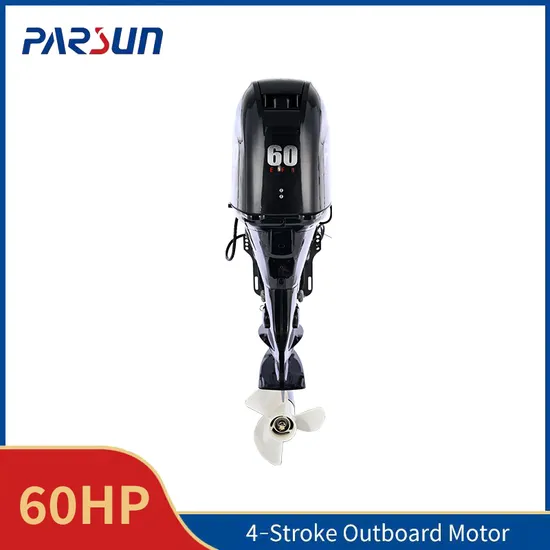

FOUR STROKE, 60HP, EFI OUTBOARD MOTOR

PARSUN 60HP EFI outboard motor is utmost powerful, silent, fuel-efficient and reliable. It is an ideal outboard for fishing boats. Its single overhead camshaft (SOHC) and eight valves aim for maximum power and efficiency.

New streamlining top cowling
PARSUN 60HP outboard motor has a new cowling design with an optimized intake air drain system, which can easily drain the water entering the top cowling during normal engine operation.

Integral engine monitoring and warning system
Several different sensors continuously monitor the engine's critical functions. They will send out special signals to inform you in advance, such as Over-Rev Limiter, Over-Heat Warning, Start-in-Gear Protection, Lower Oil Pressure Warning, and automatically reduce the engine power to prevent damage.

Multi-point electronic fuel injection with ECM control to deliver the precise fuel / air mixture for optimum combustion and provide smooth running
PARSUN four stroke 60HP EFI engine is controlled by the ECM unit, which ensures the precise amount of air necessary for optimum power and fuel efficiency. The air enters each cylinder through individual long intake manifold, helping to provide air at the precise volume and timing for maximum density and power. The four electronic fuel injectors deliver the exact amount of fuel to get the best optimum performance and economy.

Several special control sensors for EFI system to get the optimum engine performance
Crank Position Sensor
Throttle Position Sensor
Intake Air Pressure Sensor
Oil Pressure Sensor
Cooling Water Pressure Sensor
Intake Air Temperature Sensor
Cooling Water Temperature Sensor

Fuel-water separator and fuel filter
F60 outboard motor is equipped with boat-mounted water separating fuel filter, preventing any debris or water in the fuel from getting into the engine.
Optimized engine emission
Blow-by-gas re-burning system and labyrinth exhaust help to get the better emission and lower noise. F60 outboard motor meets both CE and EPA Emission Standards.

Ultimate corrosion protection system for outboard motor
Highly anti-corrosive paint system provides a five-layer painting against corrosion. Stainless steel components such as the drive shaft, propeller shaft and shifting shaft, provide the critical corrosion protection. Multiple sacrificial anodes throughout the motor provide protection from the elements.

Ultimate convenience in operation
1. Built-in freshwater flushing system provides easy routine flushing.
2. High output 18 amp alternator facilitates battery charging and fishing electronics.
3. Power trim & tilt or hydraulic system makes the engine operating more easily.
4. Magnetic drain plug for replacing oil easily.
5. Engine RPM meter, boat speed meter, battery voltage meter and tilt & trim angle meter are available at option.
6. Reliable Delphi E.F.I. multifunction diagnostic scanner (available at option).
PARSUN 60HP EFI Outboard MotorSpecifications

ITEM	F60 EFI
Engine type	4-stroke,4-cylinders,8-valve,SOHC
Displacement	996cc
Bore x stroke mm(in.)	65.0×75.0(2.56×2.95)
Idling engine speed(rpm)	750 ~ 850
Full throttle RPM range	5000 ~ 6000
Max output KW(HP)@ r/min	44.1(60)@5500
Fuel induction system	Electric fuel injection
Ignition system	Micro computer
Starting system	Electric (Turn-key)
Alternator output	12V DC / 18amp
Steering system	Tiller handle / remote control*
Gear shift	Forward-Neutral-Reverse
Gear ratio	1.85(24/13)
Trim and tilt system	Hydraulic elevator / Power trim & tilt*
Shaft length	508mm (20 in.)
Max fuel consumption	20 L/h
Fuel tank capacity	24L
Sump oil capacity	2.5L
Gear oil capacity	430cc
Dry weight	113kg~114.5kg*

* Depending on the models
*Propeller choice will vary by boat size and application.
*B=Back control(Tiller control), M=Manual start, S=Short shaft, L=Long shaft, W=Electric start+Manual start, F=Front control(Remote control),T=Electric tilt

---
