| US$3,000.00-50,000.00 | 1 Set (MOQ) |

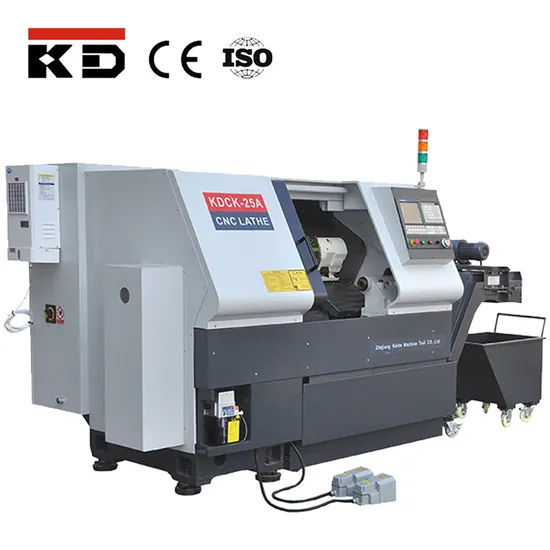

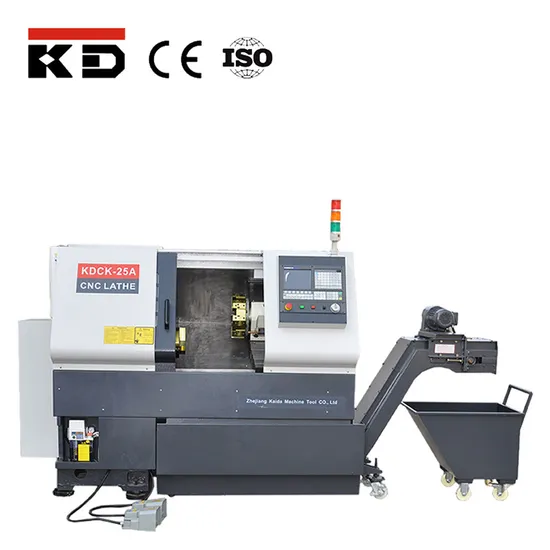

| MODELS | KDCK-25 |
| CAPACITY | |
| Max. swing over bed | Ф500mm |
| Max. cutting diameter for disc parts | Ф300mm |
| Max. cutting diameter for axle parts | Ф250mm |
| Max. length of workpiece | 420mm |
| TRAVEL | |
| Max. cross travel(X) | 180mm |
| Max. longitudinal travel(Z) | 500mm |
| FEED | |
| Rapid feed for axis X | 12m/min |
| Rapid feed for axis Z | 20m/min |
| SPINDLE | |
| Max. speed of spindle | 3000rpm |
| Spindle nose | Ф170mm/ A2-6mm |
| Spindle bore | Ф63mm |
| Type of spindle motor | Variable frequency |
| Spindle motor power | 7.5/11kw |
| Hydraulic chuck | 8″ |
| TOOL POST | |
| Tool number | 8 |
| Outside diameter of cutting tool shank | 25×25mm |
| Inner dia. of cutting tool shank | Ф40mm |
| TAILSTOCK | |
| Tailstock sleeve dia. | Ф63mm |
| Tailstock sleeve travel | 115mm |
| Taper hole of tailstock quill | M.T.No.4 |
| OTHERS | |
| Repeatability | ≤0.006mm |
| Min. input | 0.001mm |
| Bed structure | 30° slant bed (two pieces of bed stand) |
| Overall dimensions(L×W×H) | 1950×1650×1680mm |
| Net weight | 3400kg |
