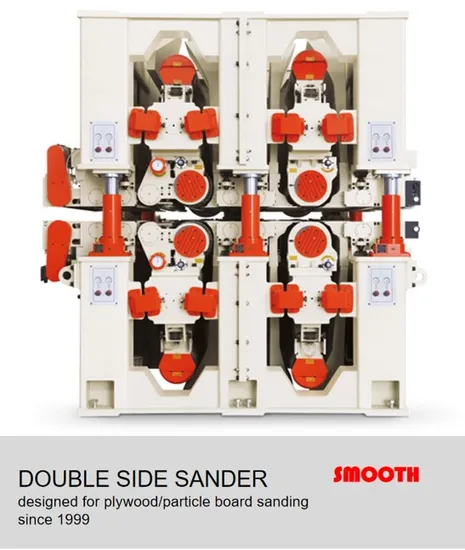

Grinding Machine Particle Board Plywood Sanding Line Double Side Sander

Product Description

Grinding Machine Particle Board Plywood Double Side Sander Sanding Line Woodo wrking Machines
MAIN PARTS DETAILS(BRAND/MODEL):

ITEM NAME	BRAND/MODEL
Main Motor	CHINA/HUALI (TOP CHINESE BRAND SINCE 1970)
Lifting Motor
Feeding Motor
Bearing of Contact Roller	NSK/22317EAE4
Bearing of Tension Roller	NSK/22211EAE4
Contactor	SCHNEIDER
Tensioning Cylinder	AIRTAC
Feeding frequency invertor	REXROTH/SIEMENS
PLC	SIEMENS
Touch Screen	SIEMENS
Relay	SCHNEIDER
Optoelectric Switch	BANNER/AB. (U.S.A) TURCK/GERMANY
Pneumatic Control Valve	MINDMAN/TAIWAN
Solenoid Valve	MINDMAN/TAIWAN
V-Belt	MEGADYNE/ ITALY (18000hrs working life)

Our Advantages

The machines produced with advanced technology supporting, and equipped with high-quality imported parts, ensuring stable sanding quality and high precision. The tolerance of workpiece thickness after double face grinding is + / - 0.05mm. The sander body is made of large cross-section cold-formed rectangular section, with features of no welding, strong rigidity, shock absorption and no deformation. Frequency converter installed for a speed regulation. Industrial touch type computer operation terminal is adopted, which is easy to operate. The whole machine frame built in profile welding way, and filled with a special shock absorption material, ensure the stability of the sanding machine operation. high precision lifting mechanism.
Product Parameters

Worktable height:1450mm; Contact roller diameter: 320mm; Operation direction: Right side; Working thickness: 1.8-70mm; Feeding speed: 20-90m/min; Main motor power:55KW/75KW/90KW Sanding stock index: 90KW motor with P100 sanding belt ,maximum sanding stock is 0.05mm at feeding speed of 90m/min; Dust cleaning system requirement: air speed 30m/s; MACHINE WORKING ENVIRONMENT SUGGESTION:Please locate the sanding line in an environment of below 1000 meters altitude and above - 20 ºC temperature;It is forbidden to use the equipment in strong magnetic area;The equipment must be used on concrete foundation; Application
Detailed Photos

---
