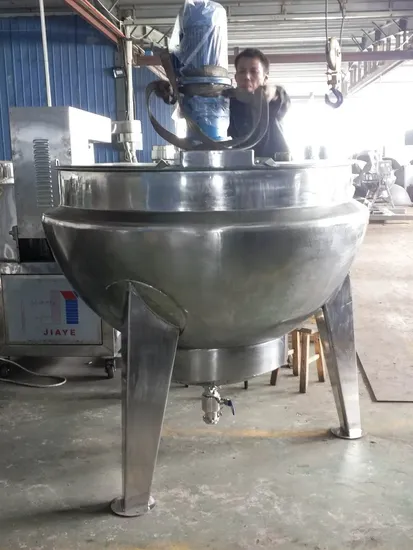

Stainless Steel Vertical Heating Jacketed Kettle with Control Panel

Product Description

Stainless Steel Vertical Heating Jacketed Kettle With Control Panel
Sanitary stainless steel jacketed kettle(steam/electrical heating)
Material: SS304/316
Electric Heating Jacketed kettles
Stainless steel double-layered boiler/kettle ,used for heating, pasteurizing, cooking, mixing juice, sauce, fruit jam and processing meat, food, Candy, pharmacy, dairy , liquor, cake, drink, candied fruit, etc
Material: SS304
Heating by Electricity
Industrial Kettle Heating Kettle Electric Kettle Jacket Kettle
* Type: with Jacketed wall
* Internal shell thickness: 3 or 4 mm, SS304
* Jacket thickness: 3 or 4mm, SS304

Product Name:	Stainless steel jacket kettle
Description:	Designed according to 3A standard, widely used for transfer viscous media in the food-processing, cosemtics and pharmaceutical industries
Construction:	vertical jacketed kettle,tilting jacketed kettle
Heating mothed	By electricity (oils or water), by steam, by gas
Material:	SS304/SS316L/1.4301/1.4404
Capacity:	50L-1000L
Agitator Type:	With PTFE scraper
Mechanical seal:	SIC/SiC/EPDM(Standard)
Motor power:	0.55kw, 1.1kw, 1.5kw, 2.2kw, 3kw, 7.5KW
Sealing option:	Sanitary single mechanical seal/Double mechanical seal with cooling system
Voltage:	220V, 380V,415V
Motor:	ABB, LOCAL,50hz/ 60hz
Surface treatment:	Inner polished and outside polished
Availably connection:	Clamp, Thread Butt weld, Flange
Availably standard:	DIN, SMS, 3A, RJT, ISO/IDF
Operated:	Electic
Application scope:	Dairy, food, beverage, pharmacy, cosmetic, etc
Packaging Details:	Plywood case or customerized. Or as per the request of customers
Delivery details:	Usually within 20 days after receiving T/T down payment

Stainless steel double-layered boiler/kettle ,used for heating, mixing fruit jam and processing meat, food, Candy, pharmacy, dairy , liquor, cake, drink, candied fruit, etc
JACKET Kettle PART
Capacity: 300L TO 1000L
Material: SS304
Heating by Electric (380V, 50HZ)
* Type: with Jacketed wall
* Internal shell thickness: 3 mm
* Jacket thickness: 3 mm
stainless steel electric/steam/gas heating jacket kettle

	KQ100		KQ150	KQ200	KQ300	KQ400	YT500
Capacity L		100		150	200	300	400	500
Jacketed pressure Mpa	< 0.2
Evaporation capacity kg/h			40	50	65	75	100	150
Heat area m 2			0.45	0.76	1.0	1.15	1.44	1.90
Energy consumption kg/h			44	55	72	90	110	165
N.W. kg			190	210	230	320	360	485
LxWxH mm			800X650X830	1350X650X1100	1400X700X1100	1450X800X1110	1500X850X1140	1600X900X1150

Stainless Steel Vertical Heating Jacketed Kettle With Control Panel .

---
