Welcome to visit

Injection Screw Barrel Injection Molding Screw Barrel

US$1,000.00-50,000.00 1 Set (MOQ)

Basic Info.

Model NO.
ZYSCREW
Structure
Vertical and Horizontal Composite
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Mechanical
Automation
Automatic
Computerized
Computerized
Certification
ISO9001:2008
Screw Barrel
Single Screw Barrel for Blowing Molding Machine
Nitrided Layer Depth
0.5-0.8mm
Nitrided Hardness
950-1050hv
Nitrided Brittleness
Less Than Grade 1
Surface Roughness
Ra0.4
Linearity of Screw
0.015mm
Transport Package
Wooden Cases
Specification
ISO9001: 2008
Trademark
ZhongYang
Origin
China(Mainland)
HS Code
84779000
Production Capacity
200 Sets/Month

Product Description

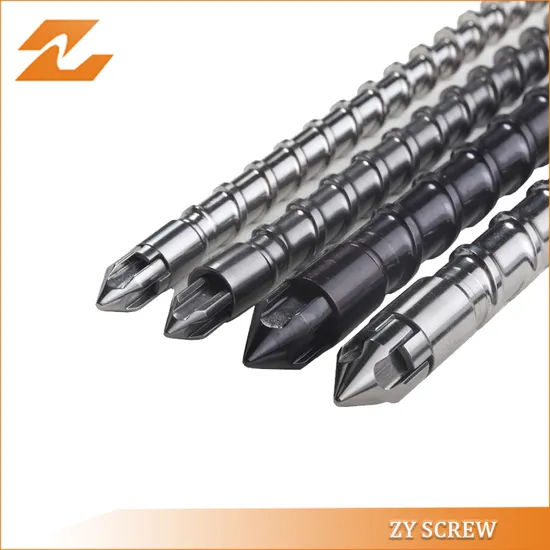

Injection screw barrel for blowing molding machine, injection molding screw barrel, plastic machinery components
Specification:
Screw diameter: Φ 20mm-Φ 220mm
Mould clamping force: 250T-3200T
Shot weight: 30G-30000G
Base Materials:
1). 38CrMoAlA(JIS SACM645).
2). 42CrMo(AISI 4140).
3). 4Cr5MoSi V1 (JIS SKD-61).
4). 9Cr18MOV
5). HPT
Bimetallic alloy materials:
1). Fe-based alloy
2). Ni-based alloy/Deloro alloy
3). Co-based alloy
4). NiCo-based alloy
5). Tungsten carbide/Wolfram carbide
Technics:
Heat treatment
High-frequency quenching
Nitriding treatment
Hard-chrome electroplating
Bimetallic alloy welding
Bimetallic alloy centrifugal casting
Technical parameter:
Nitrided layer depth: 0.5-0.8mm
Nitrided hardness: 900-1000HV
Nitrided brittleness: Less than grade 1
Surface roughness: Ra0.4
Linearity of screw: 0.015mm
Hard-chrome plating hardness after nitriding: >=950HV
Chrome-plating layer depth: 0.025-0.085mm
Bimetallic layer depth: 3mm
Warranty and service: 1 year
About ZY:
1. Rich strength----We have our own professional teams in the sales, design, production, inspection and customer service areas. We concentrate to bring customers the most perfect customer experiences.
2. High-quality products----We adopt a series of advanced production and processing equipments such as CNC machines, Stellite PTA welding machines to ensure the quality of our products.
3. Large international market----We do foreign trade more than 5 years, we have a set of mature foreign trade system, our customers are all over the world. We will continue to expand our international market.
4. Location advantage----We are located in China's screw town----Jintang town, Zhoushan city, near to Ningbo Port and Shanghai Port.
5. Serious and responsible attitude----Over the years, we always maintain a serious, professional and responsible attitude, make our best efforts to meet customers' demands.
Welcome to contact us~!
