1500*3000mm Fully Automatic Coil Laser Cutting Machine for Processing Aluminum Stainless Steel Carbon Steel China Coil Laser Cutting Machine

Product Description

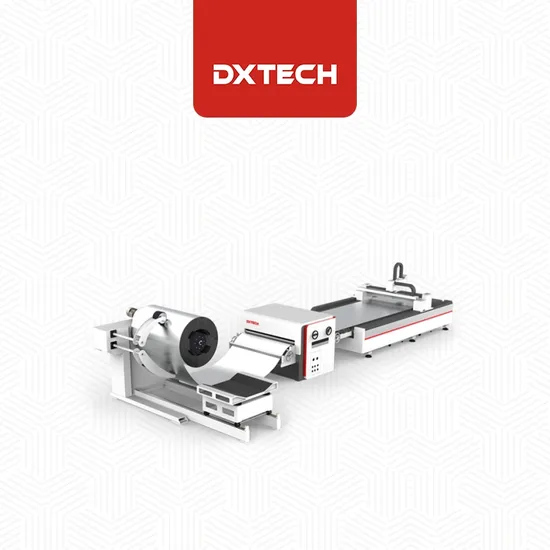

The uncoiling and leveling fiber laser machine realizes the upper and lower uncoiling → the leveling machine automatically stretches the coil → laser precision cutting → automatic The entire uncoiling and discharging process realizes intelligence and automation.
1. The weight of the loaded material can reach 20T, breaking through the feeding limit of ordinary 3T, which is 6 times the efficiency of ordinary feeding equipment.
2. Stronger stress relief: After the coil is uncoiled, the sheet is leveled by a leveling machine, which eliminates the stress of the sheet during the leveling process. The result is a flatter sheet and a better cutting experience.
3. High-precision transmission structure: Ultra-precision transmission system is adopted, and the transmission accuracy of sheet metal is about ±0.5MM, which can ensure higher precision.
4. Fully automatic assembly line: from loading-uncoiling-leveling-cutting-unloading, the whole process is fully automated, which can realize zero waste of coils and improve the utilization efficiency of plates.
5. Flexibility: The coil production line breaks through the limitation of the length of ordinary laser cutting, which is subversive in some fields.
6. Adopt the design of an isolated working area, keep the cutting area closed, ensure the operation safety and prevent the dust generated by cutting from leaking out, and ensure that the working area is clean and tidy.
Technical Parameters

Model	DXTECH-1530FC	DXTECH-1540FC	DXTECH-1545FC
Total machine weight	6.2t	6.7t	6.9t
Working area (mm)	1515*3030	5360*2250	5900*2250
Max. acceleration	1.5G	1.5G	1.5G
Worktable	Rolling blade	Rolling blade	Rolling blade
Positioning accuracy	±0.05mm	±0.05mm	±0.05mm
Repositioning accuracy	±0.03mm	±0.03mm	±0.03mm
Laser power	1kW - 2kW	1kW - 2kW	1kW - 2kW
Coil sheet thickness	0.8-2.5mm	0.8-2.5mm	0.8-2.5mm
Machine bed	Tube welded bed	Tube welded bed	Tube welded bed
Laser	Multiple options	Multiple options	Multiple options
Focusing method	Auto/manual	Auto/manual	Auto/manual
X/Y-axis max. linkage speed	140m/min	140m/min	140m/min
Leveling speed	≤20m/min	≤20m/min	≤20m/min
Coil weight	≤10t	≤10t	≤10t

Application

Material: Suitable for stainless steel, carbon steel, silicon steel, aluminum alloy, titanium alloy, galvanized steel, galvalume plate, copper, and other metals.
Industry: Fiber laser cutting machine is widely used in the automobile industry, advertising industry, kitchen industry, sheet metal industry, cabinet industry, fitness industry, etc. Specializing in sheet metal processing, aviation, aerospace, electronics, electrical appliances, subway accessories, automobiles, grain machinery, textile machinery, engineering machinery, precision accessories, ships, metallurgical equipment, elevators, household appliances, craft gifts, tool processing, decoration, advertising, metal processing, kitchen processing, and other industries.
