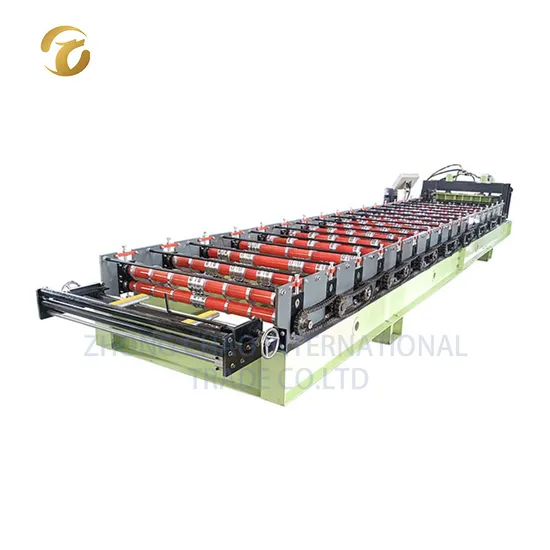

Glazed Roof Panel Metal Tile Roof Roll Forming Making Machine

Product Description

Product Parameters

Item	Data
Processing material	Color steel coil, Galvanized coil, Aluminized zinc coil or as your customized
Processing thickness (mm)	0.3-1.0mm or as your customized
Material of rollers	High grade 45# steel, Processed by CNC lathe, Hardening and tempering, polishing, hard chrome plated 0.05-0.07mm
Material of shafts	45# steel
Diameter of shafts	70mm or as your customized
Forming speed	3-4 m/min or as your customized
Under frame	350 H-beam
Sidewall	16mm
Connect bar	25mm, zinc plated
Forming steps	10-18 or as your customized
Cutting system	Delta PLC and Inverter
Suitable power	380V, 50 Hz, 3 phase or according to your need
Drive mode	Chain and sprocket, chain size 1 inch
Main motor	3-5.5kw
Hydraulic pump station	3-5.5kw
Cutting model	Hydraulic profile cutting
Weight of the machine	3.5 ton -6 ton

Product Description
Glazed tile press is mainly composed of feeding platform, forming host, stamping device, forming shear device, hydraulic station, PLC computer control system and so on. It has the characteristics of light weight, high strength, heavy bearing and good shock resistance. The antique glazed tile formed by rolling and stamping machine has the characteristics of beautiful appearance, simple and elegant, elegant shape, noble grade and so on. It can be widely used in garden factory, tourist scenic spot, pavilion, hotel villa, exhibition hall, resort, family and other buildings and outdoor decoration.
We provide customers services, the trapezoidal roofing sheet has many different shapes, usually different countries have its own popular design , we can customize the
machine as customers' demand. Here are some roof sheet designs we produced before:
Company Profile

Packaging & Shipping

a) How to choose the right machine?
Our products have corresponding pictures and videos for reference, welcome to our factory to visit the test machine.
b) How can I learn more about your products?
You can send an email to our email address. We will provide catalogues and pictures of our products for your reference.
c) Do you only sell standard machines?
We can customize according to your requirements or drawings, you can talk to us if you have any needs.
d) Do you have after-sales support?
We have a professional after-sales team. If necessary, we can send engineers to the customer site to guide the installation and commissioning of the machine.

---
