Product Description Sxg Pigment and Dye Spin Flash Dryer
SXG rotating flash drying machine is our newly developed drying equipment, with advanced technology, reasonable design, compact structure, large production capacity and energy efficiency. This rotary flash dryer can complete drying, smashing and screening in a single step. Equipped with special magnetic sealing device, it meets the GMP standards.

Model	Diameter (mm)	Dimension (mm)	Power (kw)	Air Volume (m3/h)	Water Evaporation (kg/h)	Floor Space (m2)
SXG-2	200	300 × 2800	0.75 to 2.2	300 to 800	10 to 20	3.5 × 2.5
SXG-3	300	400 × 3300	3 to 4	600 to 1500	20 to 50	3.8 × 2.7
SXG-4	400	500 × 3500	4 to 7.5	1250 to 2500	25 to 70	4 × 3
SXG-5	500	600 × 4000	5.5 to 11	1500 to 4000	30 to 100	4.2 × 3.2
SXG-6	600	700 × 4200	7.5 to 18.5	2500 to 5000	40 to 200	4.25 × 3.25
SXG-8	800	900 × 4600	11 to 18.5	3000 to 8000	60 to 600	4.5 × 3.5
SXG-10	1000	1100 × 5000	15 to 30	5000 to 12500	100 to 1000	4.75 × 3.75
SXG-12	1200	1300 × 5200	15 to 37	10000 to 20000	150 to 1300	5 × 4
SXG-14	1400	1500 × 5400	30 to 55	14000 to 27000	200 to 1600	5.25 × 4.25
SXG-16	1600	1700 × 6000	45 to 75	18700 to 36000	250 to 2000	5.5 × 4.5

PRODUCT INTRODUCTION Working Principle of SXG Rotating Flash Drying Machine

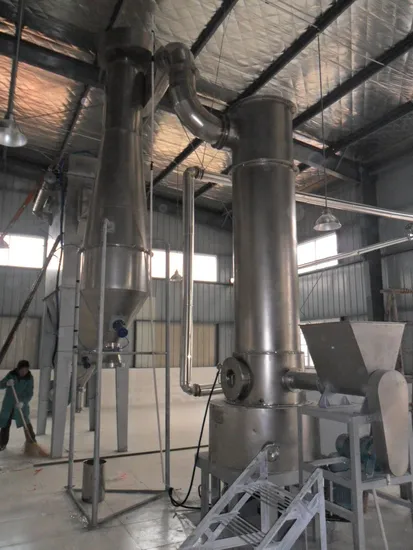

Hot air in tangential direction enters into the bottom of the rotary flash dryer, and forms strong rotational wind field under the action of stirrer. The materials get into the drying equipment from screw feeder, under the strong effect of the high-speed rotating impeller, the materials are dispersed after being rubbed and sheared. Bulk materials are quickly crushed and fully contacted with the hot air in order to complete drying. Dehydrated dry materials rise with the hot air, the grading ring will retain the large particles and the small ones will be excluded from the rotating flash drying machine through the ring center. The cyclone separator and dust remover will recover these materials. The wet or bulk materials will be threw to the container wall by centrifugal force, and fall into the bottom of the flash dryer to be crushed and dried again
Features
1. SXG rotating flash drying machine is equipped with a special cooling device at the bottom, thus avoiding material deterioration due to high temperature.
2. Wind distribution device can reduce the resistance to drying equipment and provide air volume for the dryer.
3. This rotary flash dryer uses particular pressurized sealing device and bearing cooling device to effectively prolong the service life of the drive part.
4. Material fineness and final moisture content can be adjustable.
5. Short staying time of material can prevent the material from sticking to the wall and the thermosensitive material from deteriorating.
