Furnace Wall High Temperature Camera CCTV System with Automatic Actuator

Product Description

Product Description 1.Brief Introduction

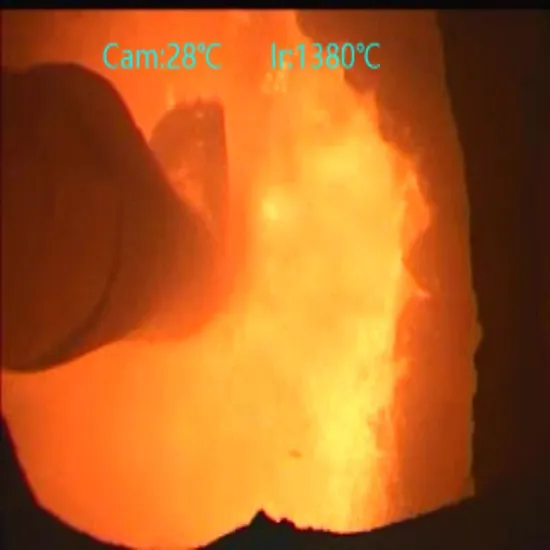

The high-temperature industrial television equipment is a special closed-circuit television equipment used in high-temperature environment, cooling by compressed air and water. The probe is made of double-layer stainless steel, and the interlayer is directly cooled by water; the inner layer of compressed air directly cools the camera and lens through the vortex refrigeration tube; at the same time, the compressed air is sprayed out from the pinhole at the front to form an air curtain to suppress the furnace Internal flame and dust, and effectively reduce the heat radiation of the probe to the high temperature in the furnace. The equipment can extend the camera lens into the furnace wall through the furnace wall opening to directly observe the operation of the workpiece in the furnace, the melting of the material and the flame shape. This camera system is widely used in metallurgy, electric power, building materials, chemical industry and other industries. What's more, we have successfully fulfilled thousands of projects in heating furnaces, steam boilers, glass melting tanks, sintering furnaces and other industrial high-temperature scenes. It not only ensures safe production and improves product quality, but also improves the working environment and reduces labor intensity; it also facilitates the realization of centralized debugging and automation of the production process.
2.Camera Paramater

Camera	Sensor	1/2.9" CMOS
	Lens	C/CS Mount, Lens optional
	Shutter	1/25~1/100000
	Aperture	Auto DC Drive
	Illumination	0.01Lux @(F1.2,AGC ON) Color,0.001Lux @(F1.2,AGC ON) B/W
	D/N Shift	IR-CUT / Auto / Timing / Value control / Rotation
	DNR	3D DNR
Image	Resolution	1920×1080 ,1280×720
	Frame Rate	Max.1920×1080 @ 50 fps
	WDR	120dB
	Horizontal Resolution	1000TVL
	Image Setting	Brightness, saturation, contrast, sharpness are adjustable via web browser or client software
	Image Enhancement	Privacy Mask,Anti-Flicker,Defog,Aisle Mode,Mirror,Rotation,BLC,HLC
	MBF	Support
	ROI	4 regions
Network	Alarm Trigger	Motion Detection,Video tampering alarm,Perimeter,Line-crossing,Network Disconnected,HDD error,IP address conflict,HDD full,Face Recognition,ANPR,Item left alarm,Defocus detection,Color cast detection,Item tracking,Scene change detection
	Protocol	TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,QoS
	System compatibility	ONVIF,GB/T28181,Active Agent Auto-Registration
	General Functions	Triple Streams,Password protection,Heartbeat.
Compression	Compression standard	H.264/H.265: Baseline ,Main Profile ,High Profile,MJPEG
	Video bit rate	64 Kbps~10Mbps
	Audio Compression Standard	G.711A,AAC,G711U,G726
	Audio bit rate	8/16Kbps
Interface	Local storage	TF Card 128G (class10)
	Alarm IN	2
	Alarm OUT	2
	Communication Interface	1 RJ45 10M/100M/1000M Ethernet Interface,1 RS485
	Audio IN	1
	Audio OUT	1

3.Probe Housing
4.Customised Appearance
Detailed Photos
Company Profile Here is Changzhou Baoyi Mechanical and Electronic Instrument Company, we make your industrial furances safer.
More than 20 years ago, Baoyi was established in Changzhou by Mr.Liu. Time has witnessed Baoyi's every step in exploring high temperature monitoring and detecting technology.
What's more, Baoyi constantly exchanges and cooperates with domestic and foreign counterparts and scientific research institutions. As a result, we successfully develops a full range of temperature measurement products. Here are some exclusive repesentatives: industrial CCTV system with temperature measurement, imaging pyrometer, SLR high temperature endoscope, infrared thermal imager, etc.
Since we have strong innovational strength, excellent quality and international service, Baoyi has fulfilled thousands of high temperature monitoring projects. Various products have been widely used in cement, glass, metallurgy, petrochemical, electric power and other industries. Our business is conducted not only all over the country but also more than 50 overseas countries and regions.
"Make furnaces safer" is not just a slogan, it has become our guideline. From the past to the future, Changzhou Baoyi will strive to build a high-tech and service-oriented international furnace monitoring enterprise.

FAQ Q1:Are you a manufacturer?
A1:Yes, we have our own factory in Changzhou.
Q2: How about the loading port?
A2: Shanghai, China/ Guangdong, China
Q3: How long is the warranty period?
A3: The warranty is usually 12 months after you receive the products. For longer, we can communicate.
Q4: What's the delivery time?
A4:Usually 25 working days after receiving payment. If some equipments are customised, it may need 30 to 45 working days.
Q5:How to deliver?
A5:According to customers' needs, sea shipping and air shipping are both available.
Q6:How about the package?
A6:According to different products, we use carton box and wooden case.
Q7:How about terms of payment?
A7: Usually 100% T/T before shipping. If you have special requests, we can negotiate.

Other questions, please feel free to contact us. We are willing to help.

---
