2021 new small glass bottle crown cover 330ml 500ml 750ml beer brewing equipment filling line bottling plant price in China

Product Description

Product Description
2021 new small glass bottle crown cover 330ml 500ml 750ml beer brewing equipment filling line bottling plant price in China
Product Description
Brief introduction of working process of Beer Filling Machine / Bottling Line:
1. Two times vacuum, 2 times CO2 injection, with foaming device(remove the air from the mouth of the bottle,oxygen content <50ppb), to reduce the oxidation of beer as much as possible.
2. Save more space ,more efficient,The three functions of bottle washing, filling and capping are combined into one machine.
3. All the beer filling valves are bought from Nanjing Light Industry , one of the best origin manufacturer of filling valves in China.
4. Replaceable star wheels , Suitable for more bottle types .
5. Flush the broken bottle out of the base , no affect the next filling process.
6. 3 bottle sensors , no bottle , no washing , no filling , no capping .
7. English operation for Electric box and Control panel.
8. Control the Vacuum pump by PLC touch screen directly.
9. Easy to operate, save your cost for workers.

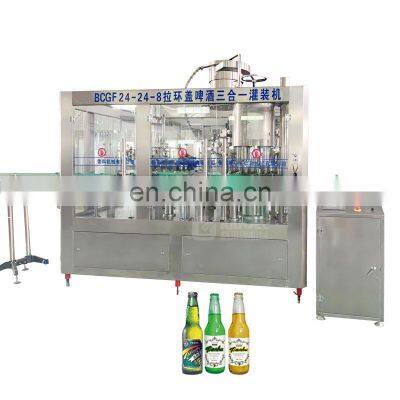

Beer Filling Machine picture:

Automatic beer filling machine production line packaging specifications					Material: SS304/316
Bottle material	Shape		Filling volume	Filling level(mm)	Neck type
Glass bottle	round bottle		100-1000ml	According request±1mm	Crown cap
Adjustable specifications	Bottle size: bottle diameter≤110mm, bottle height≤340mm
	If using square bottles, then bottle separating system will be added
Filling temperature	2℃-40℃ level control: float ball and pneumatic butterfly valve.
Bottle labeling type		Packing system Min, Spec.			Palletizing system
Wet glue or self adjesive label		Film shrink packing Robert packing Carton packing		23 24 34 35 44 45 4*6 6-30bags/min	Low position Gantry palletizer Robot palletizer
User Ambient Conditions		Temperature: 2-40℃, Humidity: no dew
Bottle feed-in		Conveyor with screw for glass bottle

Detailed Images

Transmission:Adopt screw feeding bottles, different bottle diameter with different feeding bottle screw. Main transmission adopting frequency conversion motor will be sent to decelerate box through stair belt, and then lead the whole machine running. The bottles sent by enter bottle conveyor belt will divided into a fixed interval of one-way,and the bottle inverted by enter bottle clamp, then the bottles can be sent to filling machine’s enter bottle star-wheel. The bottle by lift-up motion is fixed on the bottom of filling parts.
	Rinsing Part:Rotary rinser is one of the key components, which is installed on the clamp, media distributor and other components. When the figure of the rotary bearing rotation, driven turret and the other components are installed on the rotating simultaneously, slewing bearing lubrication in order to concentrate lubrication.
Filling Valves: CO2 pre-charge Open the charge valve, form a pathway between bottle and alcohol tank’s CO2. The CO2 will filling into the bottle through the pathway. The charge valve will closed when the setting time reached, that means the CO2 pre-charge process end. Vacuum extraction Open the take out-vacuum valve pole, form a pathway between bottle and vacuum. The CO2 and air will be discharged from the bottle by the pathway, and form into vacuum in the bottle. The take out-vacuum will be closed when the setting time arrived, then the once take out-vacuum end.
	Capping Part: The capper is made up of hopper, slide way, upper capper, lower capper, rise and fall parts, and preventing turning upright stanchion. The requirements of crown cap: Only when the height and diameter all accord with crown cap’s standard, the capper’s normal running can be guaranteed. The crown cap should be stored in the dry room.

Related products
Company information
Workshop detail
Our team
Our exhibition
FAQ
Q1: How to find suitable beer filling machine or complete beer production line?
A1: Looking forbeer filling machine in www.grandeemachine.en.china.cn
Q2: Which kinds of model for beer filling machine I should choose ?
A2: We have different model, the some of the most popular models are BGF18-18-6 / BGF24-24-8 suitable for middle brewery factory or countryside Pubs in overseas,etc.
Q3: How to confirm the bottles and caps sizes?
A3: Confirm the glass bottle size is 355ml, 500ml, 1000ml,1500ml, cap is 26mm crown cap, we prefer all the bottle sizes with same sizes bottle caps.
Q4: Which kinds of machines included in one complete beer production line?
A4: Beer fermentation tanks, beer filling machine, rotary self adhesive / wet glue labeling machine, high speed shrink packing machine or carton packing machine, laser or ink printer, palletizer, pallet wrapping machine, etc.
Q5: Are you a trading company or a manufacturer?
A5: We are the manufacture of water/beverage filling machine and water treatment system over 10 years.We just not only sell drinking water machines and other related equipment , Quality is our culture. We have rich experienced engineers with technicians working team , providing good and after-sales service term , professional salesman terms .
Q6: Do you have technical support after we purchased your machines?
A6: We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machines which you purchased. Or help you to fix machine when it has problems.
Q7: If you buy our machines, can you offer us wear-out spare parts?
A7: We provide our high quality machine 2 years guarantee , and we will also offer you 2 years wear-out spare parts for free. Once your machines broken or doesn't work within 2 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tolls. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
If you are interested in our machines, please send your inquiry.
