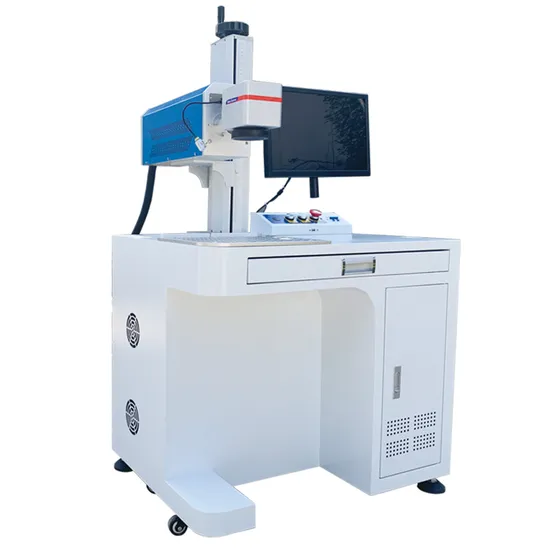

20W/30W Cabinet Fiber Laser Marker Metal Stainless Iron Laser Marking Machine

US$1,530.00 1 Piece (MOQ)

Basic Info.

Model NO.
OM-F30A
Laser Visibility
Visible
Applicable Material
Metal
Cooling System
Air Cooling
Technical Class
Pulse Laser
Laser Wavelength
Fiber Laser
Laser Classification
Fiber
Type
Optical Fiber Laser Marking Machine
Marking Method
Scanning Marking
Product Name
50W Laser Marking Machine
Power
50W
Laser Source Brand
Max (Jpt, Raycus, Ipg Other Optional)
Marking Range
110*110mm (150mm, 200mm, 300mm Optional)
Double Red Position
with
Laser Head
Sino-Galvo Scanning Head
Software
Jcz Ezcad Software
Graphic Format Supported
Ai, Plt, Dxf, BMP, Dst, PNG
Voltage
110V/220V Single Phase, 50/60Hz
Auto Focus
Optional
Rotary
Optional
2D Table
Optional
Application
Metals and Partial Nonmetal
Transport Package
Plywood Case
Specification
920*760*1100mm
Trademark
OMAI
Origin
Jinan, Shandong, China
HS Code
8456110090
Production Capacity
200sets/Month

Product Description

20W/30W CabinetFiberLaserMarker Metal Stainless IronLaserMarkingMachine
Product Description

Detailed Photos
Galvo head
Famous brand Sino-galvo, adopting new technology, digital signal, high precision and speed.
F-theta lens
Singapore lens, 1064nm f=254nm, highest light transmission make sure no power reduction.
The default match is 110x110mm, optional 150x150mm, 200x200mm, 300x300mm, etc.
Laser Source
Wuhan Raycus brand fiber laser generator, with a normal working life of 100,000 hours. You can also choose MAX/JPT/IPG.
JCZ control board
EZCAD genuine products, user-friendly interface, fuctional diversity, high stability, high precison. Each board has its own number to ensure that it can be inquired in the origional factory. Refuse to fake.
Working platform
Aluminium working paltform and imported precise beeline device.
Flexibility mesa have multiple screw holes, convenient and custom installation, special fixture industry platform.
Marking ruler and rotating handle
Enables customers to precisely position for fast angraving.
Adapting to different products height.
2D/3D table and extended platform for option
50mm/80mm rotary for your option.
Also can customize according to your needs.
Product Parameters
Machine model OM-F20A OM-F30A OM-F50A OM-F100A
Wave length of laser 1064nm
Laser repetition frequency 20kHz~100kHz
Laser power 20W 30W 50W 100W
Marking scope 110*110 /150*150/175*175/200*200mm/300*300/400*400mm
Laser sources Raycus/Max/JPT
Laser Head Scanning head
The minimum focus facula diameter 20μm
Minimal character 0.01mm
Marking speed 7000mm/s
Repeated accuracy 0.0025mm
Cooling ways Air Cooling
Power supply 110V/220V/, 50/60Hz
Process Material All kinds of metal and part of Non-metal Materials
Support format PLT, BMP, DXF, JPG, TIF, AI etc
Package Standard export wood case

Application
Our Fiber Laser Marking Machine is specially engineered to work seamlessly with both metal and select non-metal materials.
Ideal for marking a variety of metals including gold, silver, stainless steel, brass, aluminum, steel, and iron.
Equally effective on non-metal materials such as ABS, nylon, PES, PVC, and Makrolon.

Packaging & Shipping
After Sales Service
1) 3 years for whole machine, 2 years for fiber source
2) Lifelong technical support online or by email
3) 24 hours online service to help you use our machine well
4) Offer oversea service for training,installing,operating if necessary
5) Offer training at our factory for free(you could visit us and learn)
6) CE and FDA certificate, the machines are produced according to standard
