Small Industry Electric Crushed Tomato Puree Production Line Plant Tomato Source Processing Machines

Product Description

Small Industry Electric Crushed Tomato Puree Production Line Plant Tomato Source Processing Machines Product Description
Small Industry Electric Crushed Tomato Puree Production Line Plant Tomato Source Processing Machines

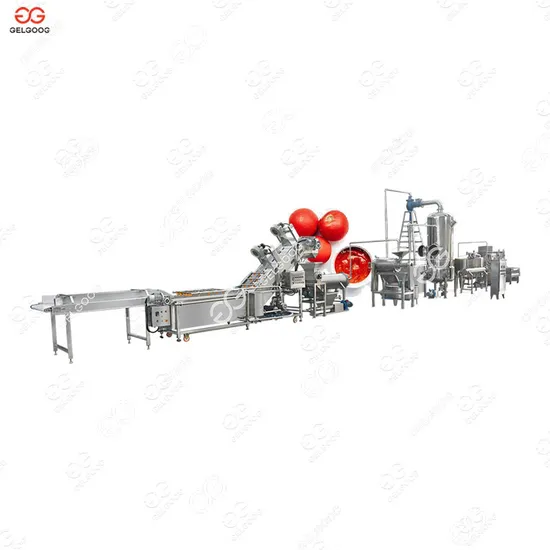

Introduction of Tomato Paste Making Machine
Tomatoes are usually processed as ketchup or tomato juice. Tomato sauce is a bright red sauce, the most unique feature of ketchup is that it can become a very special condiment.Gelgoog Can provide you different Capacity Tomato Paste Machine based on your requests.
1. Receiving, Washing and Sorting line with Water Filtering System.
2. Tomato Pulping & Refinning System with high efficiency Hot Break and Cold Break technology complete with latest design with double stage.
3. Forced Circulation Continuous Evaporation System, simple effect or multi effect, completely controlled by PLC.
4. Aseptic Filling System complete with Tube-in-Tube Aseptic Sterilizer specifically designed for high viscous products and Aseptic Filling Heads for aseptic bags of various sizes, completely controlled by PLC.
5. The Tomato Paste in aseptic drum Can Be Further Processed to Tomato Ketchup, Tomato Sauce, Tomato Juice, etc. in tin can, bottle, pouch, etc. Or directly produce end product (tomato ketchup, tomato sauce, tomato juice in tin can, bottle, pouch, etc.) from fresh tomato.
Detailed Photos
Product Parameters

Processing Capacity(KG/H) (fresh fruit)	60	150	250	500	750	1000	1250	1500
Water Consumption (t/h)	7	13	22	44	66	88	110	132
Power(kw)	84	152	412	636	955	1292	1411	1558
Steam Consumption(t/h)	1.7	3.9	5.2	9.1	15.1	20.2	24.6	29.2
Compressed Air Consumption (t/h)	66.2	66.2	66.2	72.2	72.2	72.2	72.2	72.2
Cooling Water Consumption (t/h)	125	317	407	585	825	1075	1410	1630
Advantages:	The tomato processing line from Gelgoog machinery company is running with high effective, water saving, high extracting rate, safety quality control for final product, safety control for operators, etc.

Company Profile
GELGOOG, one leading professional provider of food processing and packaging equipment in China, is committed to provide competitive total full-process solutions, safe and reliable products and efficient professional services for global food industry users.
We insist on taking our customer as No1, GELGOOG owns a professional and passionate engineer team who always listen to customer's needs and wants as well as provide them with pragmatical and personalized solutions. We always focus on investment cost reductions and greater value returns for our customers.
We insist on aiming our core best business in which we have expertise and profession. Over recent 10 years of intensive cultivation, we have accumulated rich experience and strength in the processing fields of fruit & vegetable, nut, pastry and packaging equipment. Our products have served more than 2,000 users including Unilever, Mengniu Dairy and other global brands of which we have earned good words of mouths with our fine-quality products and services across 180 countries.
We insist on technology-driven development by building our own product R&D center and establishing strategic partnerships with several universities & science research institutions. We not only pay close attention to the developing trends from global food processing industry, but also continuously invest millions RMB in R&D every year in order to develop more efficient and reliable products.
We insist that both designing and production are crucial by investing in purchasing advanced equipment, such as automatic fiber laser cutting machines, various CNC machine tools and welding robots etc. We have established a comprehensive product quality management system and been certified ISO9001 in 2015. Both advanced equipment and comprehensive quality control system have secured basic protection for fine-quality products.

---
