Mkq1632b, Automatic Cutting Nc Cylindrical Grinder

Product Description

Product Description
Main functions and features
• Automatic loading and unloading CNC cylindrical gr inding machine,suitable for grinding large quantities of parts,one person can easily to operate more than5 machines, with high cost performance.
• The electrical system is controlled by SYNTECsystem intelligent touch panel and keyboard screen .
• Man-machine dialogue operation, parameter tables and picture type of programming.
• Making operationmore simple andconvenient.
• Headstock motor senvo motor,three point contact workpiece clamping for independent research and development of floating device.
• The system uses double channel control path, enabl ingsimultaneous
• Grinding products and robotic handling products, im prove product cycle times.

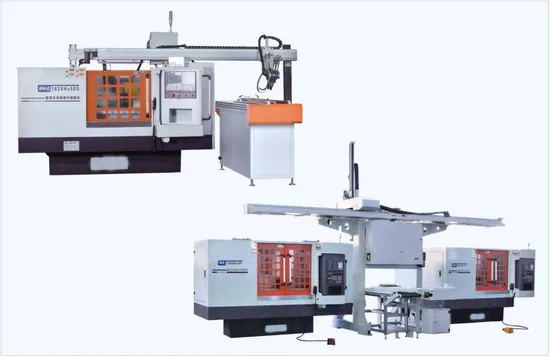

• Machine automatic manipulator can up and down from the left and right sides in and out of the machine tool,the user put the machine tool is more flexible and convenient.And machine tool can put several machines together,form automatic production lines,greatly improve production efficiency,saving valuable prodrction site.
Product Parameters

Description	(unit)	MKQ1620H×500	MKQ1632B×500
Dia to be ground	(mm)	φ8- φ200	φ8- φ320
Max.length to be guound	(mm)	500	500
Center heighe	(mm)	135	180
Distance between centers	(mm)	500	500
Headstock center	()	4#	5#
Tailstock center	()	4#	4#
Max.workpiece weight to be	grounnd (kg)	5	5
Wheel size	(mm)	φ500×φ50xφ203	φ600×75×φ305
Wheel peripheral speed	(m/s)	45()	45()
Wheel spindle rotation speed	(r/min)	1720	1433
XMin.pulse amount in X-axis	(mm)	0.001	0.001
ZMin.pulse amount in X-axis	(mm)	0.001	0.001
Total motor power	(kw)	15	22
Long it udingal servo motor	(kw)	2.4(11.5Nm)	3.1(15Nm)
Traverse servo motor	(kw)	2.4(11.5Nm)	3.1(15Nm)
