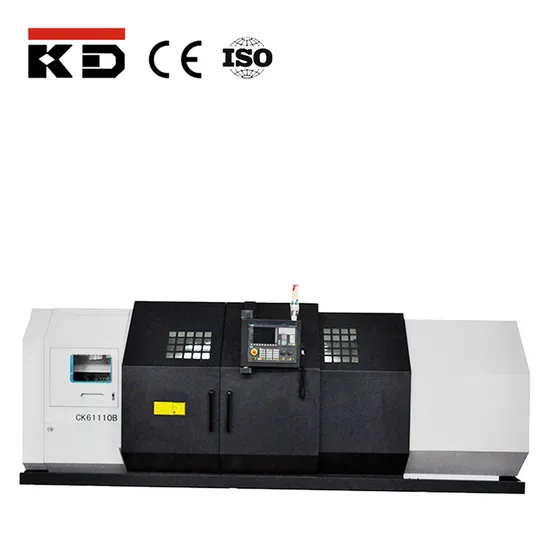

ITEMS | CK6191B/ CK6291B | CK61100B/CK62100B | CK61110B/CK62110B |
Max. swing over bed | Ø910mm | Ø1000 mm | Ø1100 mm |
Max. swing over carriage | Ø530mm | Ø620mm | Ø720mm |
Width of bed | 600mm | ||
Maximum turned length | 1.5/2/3/4mm | ||
Max. turning length | 1350/1850/2850/3850mm | ||
Max. weight between center | 2000kg | ||
*over gap | Ø1100 mm | Ø1200 mm | Ø1300 mm |
*Effective length of gap | 400 mm | ||
Spindle nose | D11 | ||
Spindle bore | Ø104mm | ||
Cone hole diameter and taper of spindle hole | Metric Ø120 1:20 | ||
Steps of spindle speed(Manual) | 4(Variable Within Each Step) | ||
Range of spindle speed | 10~90,20~180,40~320,80~630r/min | ||
Rapid feed for Axis Z | 10m/min | ||
Rapid feed for Axis X | 8m/min | ||
Max. travel of Axis X | 520mm | ||
Min. input | 0.001mm | ||
Tool post stations | 4-way | ||
Tool cross section | 40×40mm | ||
External diameter | Ø100mm | ||
Taper of bore | M.T.NO.5 | ||
Max. Traverse | 250mm | ||
Power of main motor | 15KW | ||
Power of cooling pump | 370W | ||
2m Overall dimensions(L×W×H) | 4200×2000×1930mm | 4200×2000×1980mm | 4200×2000×2030mm |
Net weight | 6600Kg | 6770Kg | 6940Kg |
Note : For each additional machine length of 1m, there will be additional net weight of 600kg | |||
