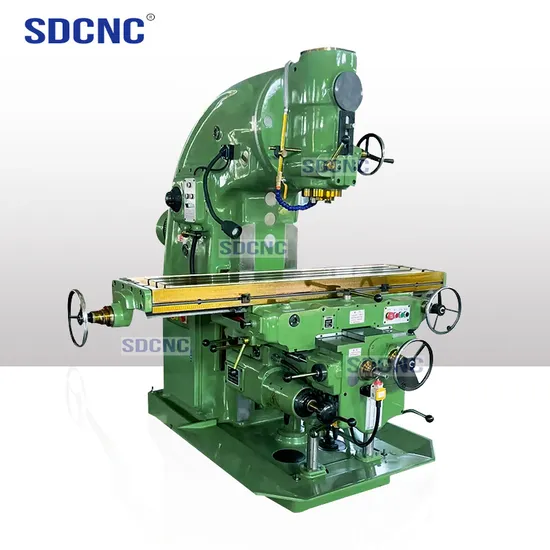

Universal Milling Machine Heavy Duty and Milling Machine X5040 Hot Sale

Product Description

The main performance characteristics:
1. Using rectangular guide machine is Rigid good,
2. Work table and guide rail through the ultra audio spark quenching.
3. Work bench X. Y.Z are gear drive automatic feed and manual operation
4. Milling head can be rotated 45 degrees,
Application:
1. Vertical lifting platform milling machine is a kind of general metal cutting machine tool.
2. Spindle taper hole of the machine can be directly or through the attachment installed all cylindrical milling cutter, disc cutter,
molding cutter, end milling cutter tool, suitable for processing a variety of small parts of plane, inclined plane, grooves, holes, and
other gear. Is a mechanical manufacturing, mold, equipment, instruments, automobiles, motorcycles and other industries of the
ideal processing equipment.
Product Parameters
Product main technical parameters:

Specifications	Units	X5040
Table size	mm	1700x400
T-type slot numbers / width /space	mm	3-18-90
Max. load of table	kg	800
Longitudinal travel (manual/auto)	mm	900/880
Transverse travel(manual/auto)	mm	315/300
Vertical travel (manual/auto)	mm	385/365
Cutting feed speed	mm/min	X.Y:23.5-1180. Z:8-394
Rapid feed speed	mm/min	X.Y:2300..Z:770
Spindle travel	mm	85
Distance between spindle nose and table surface	mm	130-515
Max. swivel angle of table		±45°
Spindle speed step	steps	18
Spindle speed range	rpm	30-1500
Spindle motor power	KW	11
Overall dimensions	mm	2560x2130x2298
Machine weight	Kg	4250

---
